Test Cutting/Technical Consultation
(Performance Evaluation)
As a cutting tools manufacturer with growing technological expertise, we are able to propose a wide range of solutions.
Performance Evaluation
An important point for conducting process improvement activities on-site is not to only rely on personal experiences or intuition but also to clarify problems through visualization of the machining phenomena with the help of the latest measuring equipment.
In-Line(in machine) Performance Evaluation
Utilizing high speed camera to observe the machining point along with simultaneous measurements of cutting vibration, cutting resistance, cutting force, displacement and cutting temperature etc., can provide new findings and more in-depth information on the actual causes.

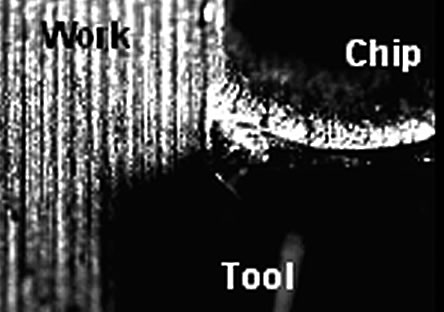

Example of observation by high speed camera

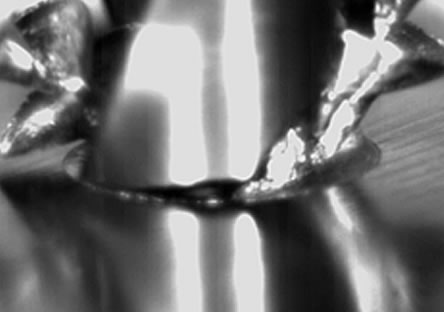

Example of observation of drilling (Drill)
Example of observation of built-up edge (Turning)
Example of measuring cutting vibration
Example of measuring cutting temperature by a radiation thermometer
Example of measuring cutting force by Kistler’s dynamometer
Example of analysis on chips simulation
Off-Line(outside machine) Performance Evaluation
Quality problems on the test cut component can be confirmed through measuring its surface roughness, roundness and from the tool wear.
Example of measuring surface roughness by a laser displacement meter
Photograph of tool wear
Photograph example of tool wear
（SEM = scanning electron microscope）
Example of measuring roundness
