Chipbreakers Selection (Application Range)

  • Products
  • Chipbreakers Selection (Application Range)

Negative Type

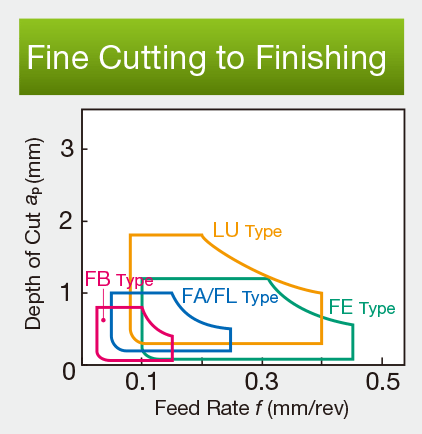

  • Image: Fine to Standard FinishingFine to Standard Finishing

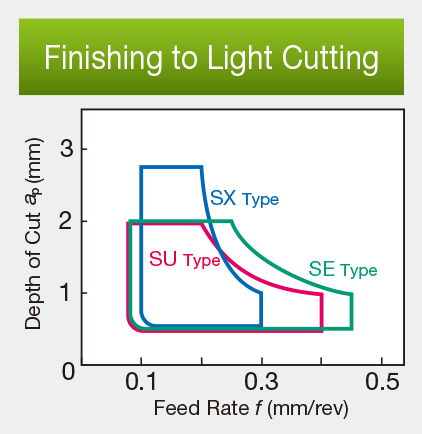

  • Image: Finishing to Light CutFinishing to Light Cut

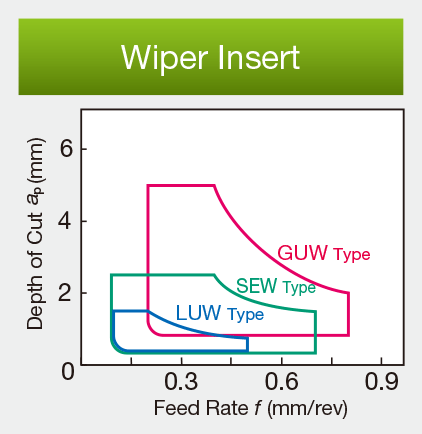

  • Image: Wiper InsertWiper Insert

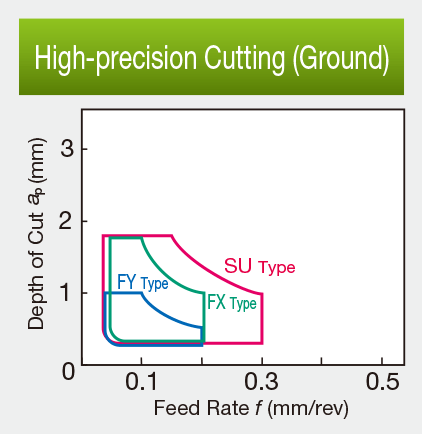

  • Image: High PrecisionHigh Precision (Ground inserts)

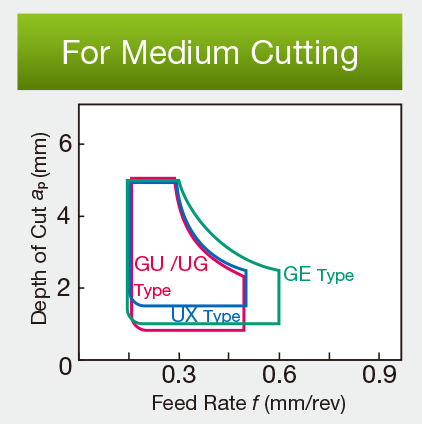

  • Image: Medium CutMedium Cut

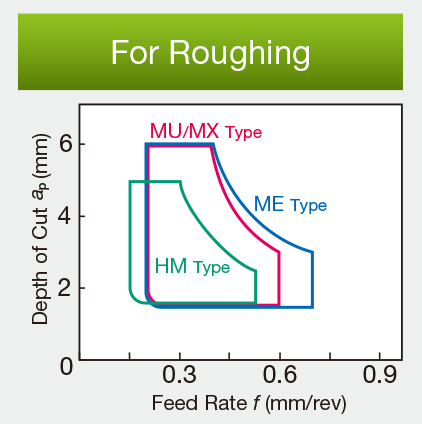

  • Image: Rough CutRough Cut

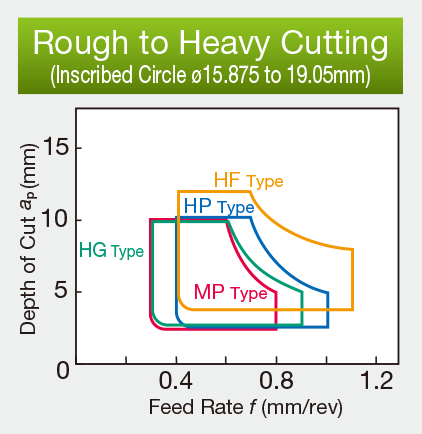

  • Image: Rough to HeavyRough to Heavy
    (IC ø15.875 to 19.05mm)

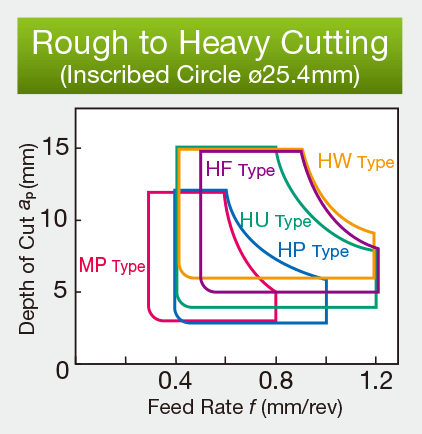

  • Image: Rough to HeavyRough to Heavy
    (IC ø25.4mm)

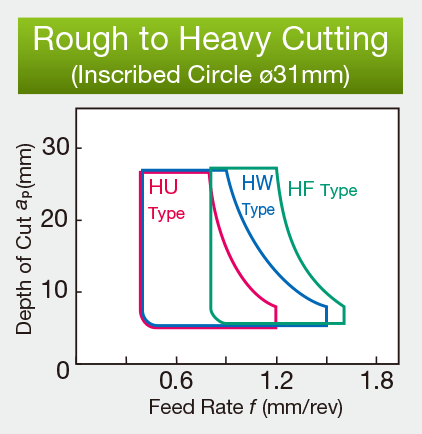

  • Image: Rough to HeavyRough to Heavy
    (IC ø31mm)

Negative Type (by Work Materials)

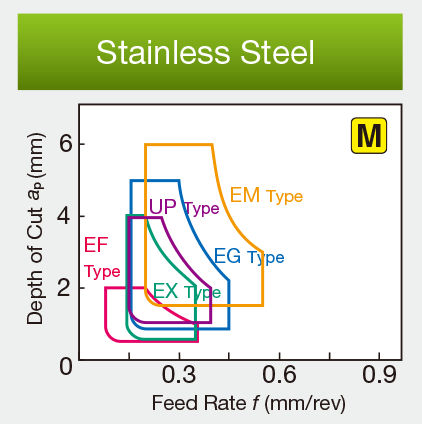

  • Image: for Stainless Steelfor Stainless Steel

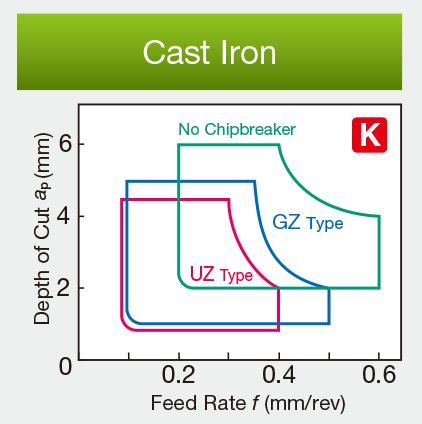

  • Image: for Cast Ironfor Cast Iron

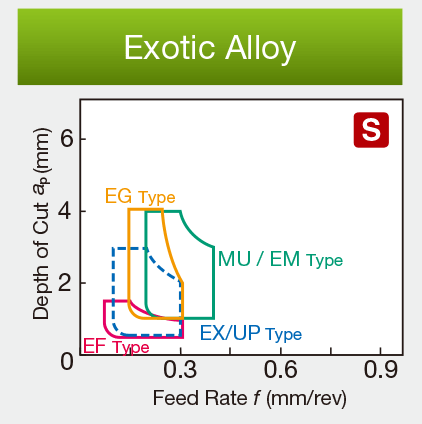

  • Image: for Exotic Alloysfor Exotic Alloys

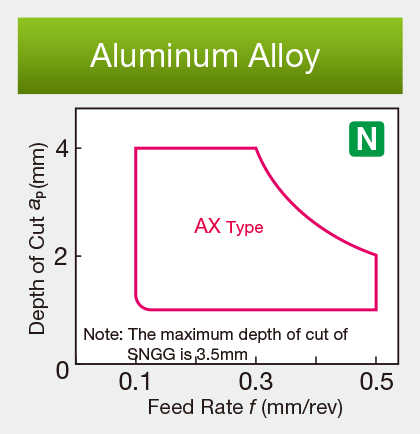

  • Image: for Aluminum Alloyfor Aluminum Alloy

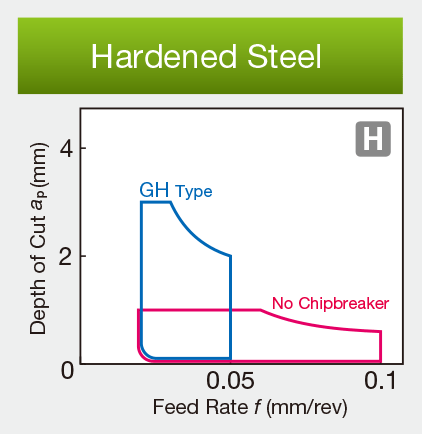

  • Image: for Hardened Steelfor Hardened Steel

Positive Type

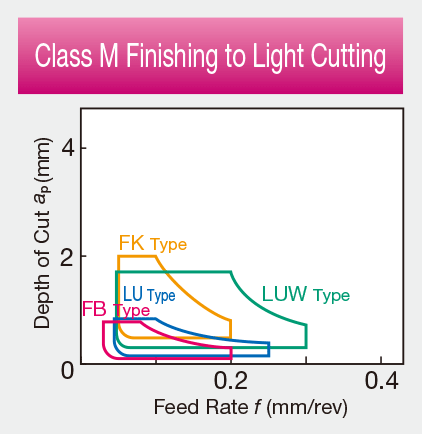

  • Image: Finishing to Light CutFinishing to Light Cut (M class)

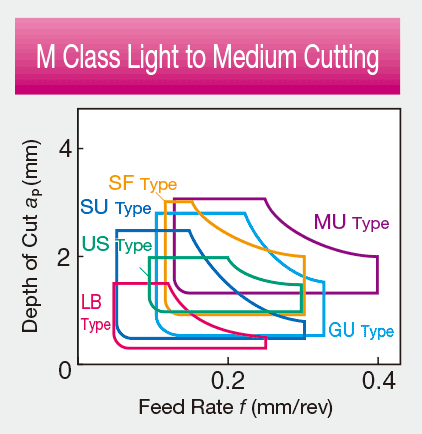

  • Image: Light to Medium CutLight to Medium Cut (M class)

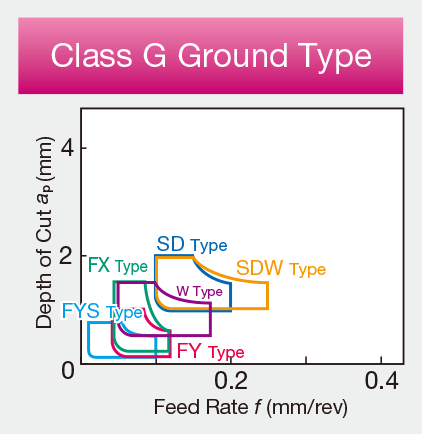

  • Image: Ground Chipbreakers Ground Chipbreakers (G class)

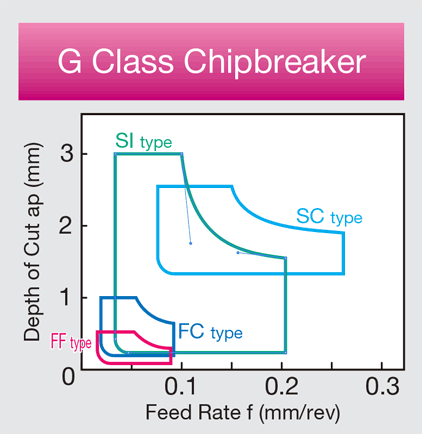

  • Image: ChipbreakersChipbreakers (G class)

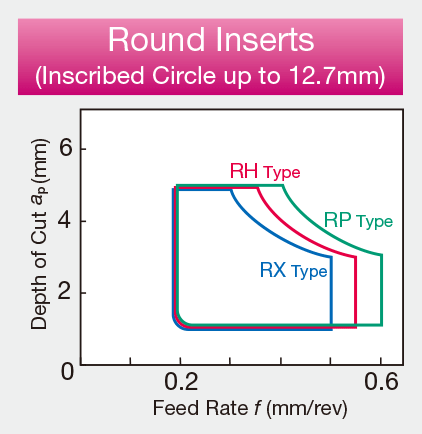

  • Image: Round TypeRound Type (IC up to ø12.7mm)
  • Image: for Aluminum Alloyfor Aluminum Alloy

CBN / PCD

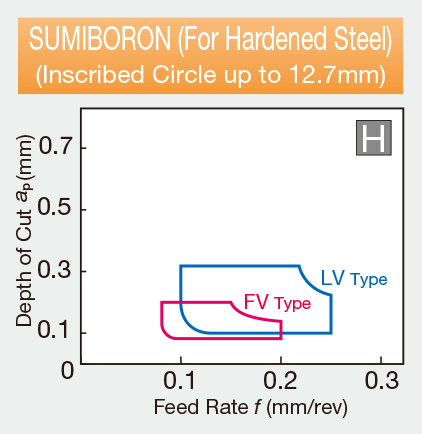

  • Image: CBNCBN (for Hardened Steel)

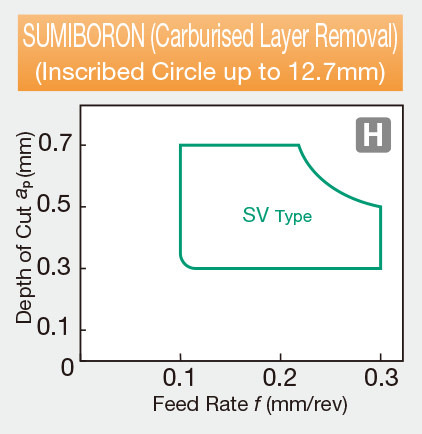

  • Image: CBNCBN (for Carburized Layer Removal)

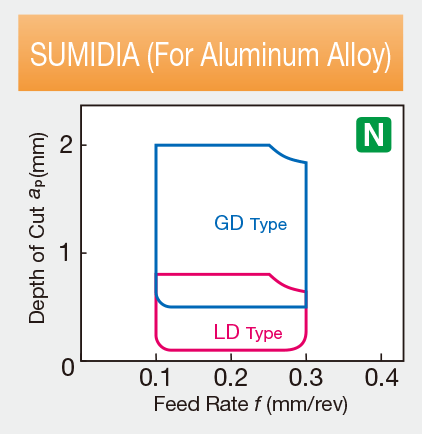

  • Image: PCDPCD
