Super MULTIDRILL

GS series / HGS series / WGS series

Excellent Chip Evacuation and Stable and Long Tool Life

Recommended Work Material

  • P
  • M
  • K
  • N

Feature

Excellent Chip Evacuation and Stable and Long Tool Life


GS series / HGS series

“J flute” design offers a wide chip pocket, producing more compact chips while achieving higher speeds.

Super MultiDrill GS/HGS utilize a new "J-flute" design with wide chip pockets for excellent chip control and chip evacuation.

In addition, the new "DEX-Coat" exclusively for drills, enables stable and long tool life over a wide variety of work materials and applications.

Unparalleled versatility for a diverse range work materials
“J-flute” design achieves stable drilling with excellent chip evacuation

Provides stable drilling with no wobbling for small machines.
Wide chip pocket evacuates chips formed at the center portion smoothly.

Utilizing “DEX-Coat” exclusively for drills to achieve stable and long tool life

Utilizing an unique nano-coating technology to create a new generation coating specially for drills to achieve more than double the tool life of conventional coatings.
Adding silicon and chrome drastically improve the wear, thermal and adhesion resistance
Newly developed composite super multi-layered structure significantly improves chipping resistance (coating strength).

HGS utilizes a double margin design to improve hole accuracy for deep hole drilling

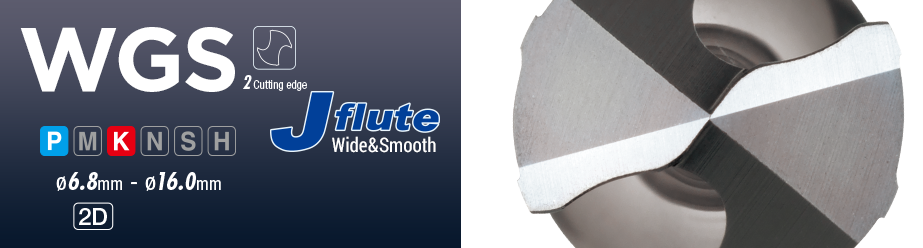

WGS series

Super MultiDrill WGS features a fine tuned "J-flute" that improves chip breaking capabilities during sheet metal drilling.

Unparalleled cutting edge sharpness minimizes work hardening and utilizing a special double-margin design produces consistent hole accuracy .
