D type - Tool holders

D type - Tool holders

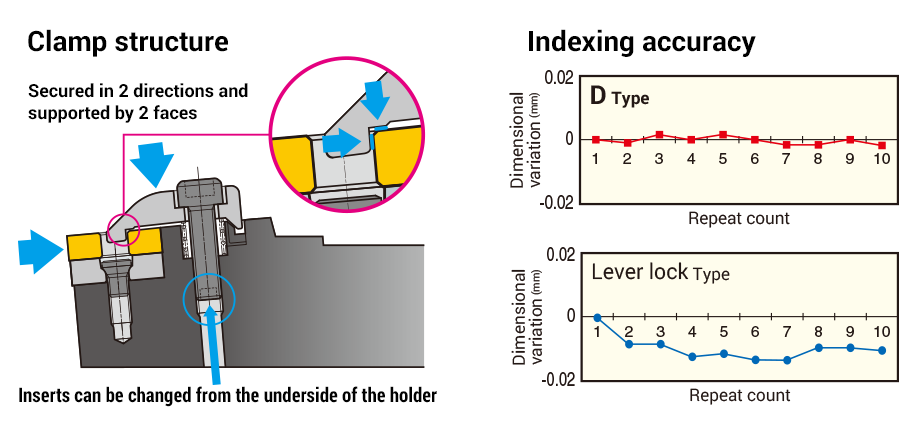

Robust double-clamped holder

1. Stable clamping improves fracture resistance of the insert.

2. Improved machining accuracy with high indexing accuracy.

3. Easy tool tip replacement with a single operation.



Features



Sintered alloy (Gear parts)

D type-Ex1

Holder DCLNL2525M12
Insert CNMG120408N-SU (EH510Z)
Cutting
Conditions
vc=150m/min, f=0.30mm/rev, ap=0.20mm, Wet






SCR420H(60HRC Automotive parts)

D type-Ex2

Holder DTGNR2525M16
Insert 6NC-TNGA160408 (BNC150)
Cutting
Conditions
vc=150m/min, f=0.15mm/rev, ap=0.10mm, Dry
