Lens, Mirror for Fiber Laser & YAG Laser
F-Theta Lens
Feature

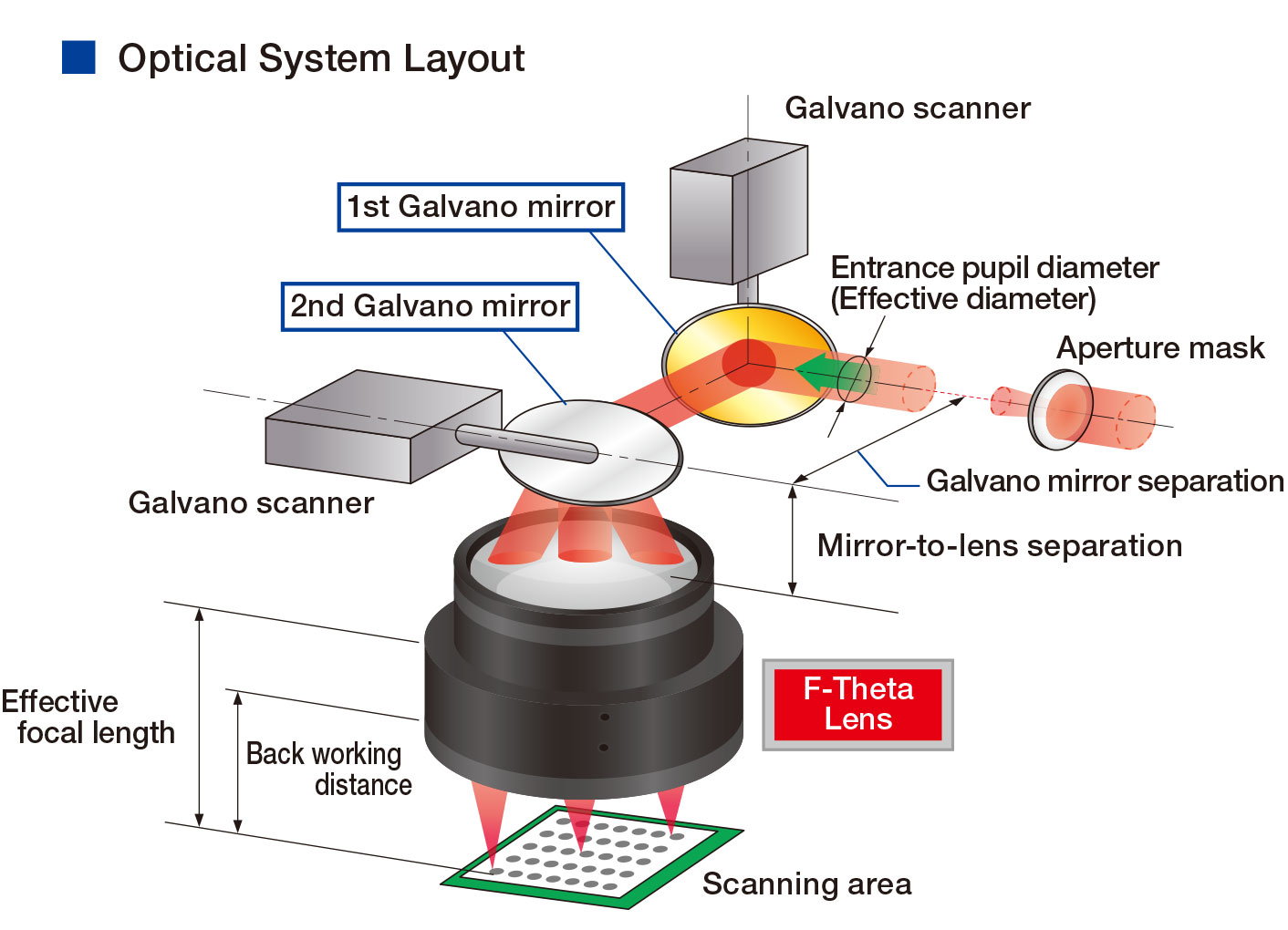

This lens focuses a laser beam scanned with a scanner, etc. It is used for high speed micro drilling of printed circuit boards, high-speed marking of electronic parts and resin parts, etc. Highly precise telecentric lenses minimize distortion and make a laser beam incident almost perpendicularly to the work piece. It is suitable for processing such as laser micro drilling. Wide area non-telecentric lenses is suitable for markers, plotters, etc. of which you want to scan a wide area quickly.
A standard F-Theta lens for wavelength 1064nm laser is ready, please contact us.
Movie
Spec Examples
High power fiber / Near-infrared laser
（Wavelength 1030nm to 1090nm, Material : Fused silica）
Scroll horizontally
| Optical Design No. | Wavelength (nm) |
Effective Focal Length (mm) |
Entrance Pupil Diameter (mmø) |
Scanning Area (mm sq.) |
Telecentric error (degrees) | Max outside size (diameter (rmm) × length (mm)) | Remarks |
|---|---|---|---|---|---|---|---|
| FU1F100.3E10S35TA | 1030 to 1090 | 100.3 | 10 | 35 | 1.2 | 99×78.5 | *1,*2,*3 |
| FU1F163.5E15S90TA | 1030 to 1090 | 163.5 | 15 | 90 | 5.7 | 150×99 | *1,*2 |
| FQ1F100E12S30TA | 1030 to 1090 | 100 | 12 | 30 | 2.5 | 100×123 | |
| FQ1F100E12S35TA | 1030 to 1090 | 100 | 12 | 35 | 4.1 | 130×123 | *2 |
| FQ1F100E20S20TA | 1030 to 1090 | 100 | 20 | 20 | 2.7 | 116×123 | |
| FQ1F100E20S30TA | 1030 to 1090 | 100 | 20 | 30 | 3.3 | 106×121 | |
| FQ1F160E14S50TA | 1030 to 1090 | 160 | 14 | 50 | 2 | 130×110 | |
| FQ1F165E12S50TA | 1030 to 1090 | 165 | 12 | 50 | 3.7 | 130×176 | |
| FQ1F180E20S100TA | 1030 to 1090 | 180 | 20 | 100 | 2 | 200×197 | |
| FQ1F210E10S130TA | 1030 to 1090 | 210 | 10 | 130 | 2.2 | 227×160 | |
| FQ1F240E20S75TA | 1030 to 1090 | 240 | 20 | 75 | 3.5 | 137×130 | |
| FU1F277E20S90TA | 1030 to 1090 | 277 | 20 | 90 | 6.7 | 108×70 | *2 |
| FQ1F330E10S80TA | 1030 to 1090 | 330 | 10 | 80 | 3.1 | 118×180 | *2 |
| FQ1F400E25S200A | 1030 to 1090 | 400 | 25 | 200 | 11.3 | 160×91 | |
| FQ1F450E30S200A | 1030 to 1090 | 450 | 30 | 200 | 10.8 | 166×118 |
*1：In stock *2：Mount thread(M85) *3：Demonstration product
YAG / Near-infrared laser
（Wavelength 1030nm to 1090nm, Material : Glass）
Scroll horizontally
| Optical Design No. | Wavelength (nm) |
Effective Focal Length (mm) |
Entrance Pupil Diameter (mmø) |
Scanning Area (mm sq.) |
Telecentric error (degrees) | Max outside size (diameter (rmm) × length (mm)) | Remarks |
|---|---|---|---|---|---|---|---|
| FS1F45E10S12A | 1030 to 1090 | 45 | 10 | 12 | 9.9 | 100×125 | *2 |
| FS1F50E20S10TA | 1030 to 1090 | 50 | 20 | 10 | 3.4 | 130×123 | *2 |
| FS1F70E20S15TA | 1030 to 1090 | 70 | 20 | 15 | 7.4 | 152×221 | *2 |
| FS1F80E10S30TA | 1030 to 1090 | 80 | 10 | 30 | 5.1 | 120×168 | |
| FS1F80E20S25TA | 1030 to 1090 | 80 | 20 | 25 | 2.0 | 150×138 | *2 |
| FS1F100E20S25TA | 1030 to 1090 | 100 | 20 | 25 | 5.2 | 150×174 | |
| FS1F100E25S40A | 1030 to 1090 | 100 | 25 | 40 | 9.6 | 145×181 | |
| FS1F120E14S55TA | 1030 to 1090 | 120 | 14 | 55 | 3.1 | 129×132 | *2 |
| FS1F135E30S40TA | 1030 to 1090 | 135 | 30 | 40 | 3 | 130×150 | |
| FS1F160E30S40TA | 1030 to 1090 | 160 | 30 | 40 | 2.5 | 130×110 | |
| FS1F163E14S80TA | 1030 to 1090 | 163 | 14 | 80 | 6.1 | 130×86 | |
| FS1F163E20S90A | 1030 to 1090 | 163 | 20 | 90 | 15.3 | 145×84 | |
| FS1F200E15S120A | 1030 to 1090 | 200 | 15 | 120 | 16 | 170×200 | |
| FS1F200E20S100A | 1030 to 1090 | 200 | 20 | 100 | 12.8 | 136×177 | |
| FS1F300E25S50TA | 1030 to 1090 | 300 | 25 | 50 | 7 | 110×159 | *2 |
| FS1F310E30S210A | 1030 to 1090 | 310 | 30 | 210 | 25.8 | 210×257 | |
| FS1F370E20S170A | 1030 to 1090 | 370 | 20 | 170 | 20 | 145×168 | |
| FS1F400E20S200A | 1030 to 1090 | 400 | 20 | 200 | 12.8 | 130×75 | *3 |
| FS1F450E30S300A | 1030 to 1090 | 450 | 30 | 300 | 26.3 | 210×218 | |
| FS1F630E20S300A | 1030 to 1090 | 630 | 20 | 300 | 13.6 | 130×73 |
*2：Mount thread(M85) *3：Demonstration product
YAG SHG / Green laser
（Wavelength 532nm, Material : Glass or Fused silica）
Scroll horizontally
| Optical Design No. | Wavelength (nm) |
Effective Focal Length (mm) |
Entrance Pupil Diameter (mmø) |
Scanning Area (mm sq.) |
Telecentric error (degrees) | Max outside size (diameter (rmm) × length (mm)) | Remarks |
|---|---|---|---|---|---|---|---|
| FU2F100E10S35TA | 532 | 100 | 10 | 35 | 1.3 | 99×78.7 | *1,*2,*3 |
| FU2F163.9E10S90TA | 532 | 163.9 | 10 | 90 | 4.9 | 122×98 | *1,*2,*3 |
| FS2F70E10S25TA | 532 | 70 | 10 | 25 | 4.9 | 150×134 | *2 |
| FS2F87E15S20TA | 532 | 87 | 15 | 20 | 0.7 | 115×132 | |
| FS2F100E20S20TA | 532 | 100 | 20 | 20 | 5.2 | 150×174 | |
| FS2F125E9S45TA | 532 | 125 | 9 | 45 | 1.9 | 114×109 | |
| FS2F165E14S90A | 532 | 165 | 14 | 90 | 9.8 | 174×216 | |
| FS2F200E15S50TA | 532 | 200 | 15 | 50 | 3.5 | 90×66 | *3 |
| FS2F206E10S50TA | 532 | 206 | 10 | 50 | 0.7 | 90×68 | |
| FS2F230E20S100TA | 532 | 230 | 20 | 100 | 4.7 | 163×153 | |
| FS2F250E7.5S160A | 532 | 250 | 7.5 | 160 | 10.9 | 160×83 | |
| FS2F250E15S120A | 532 | 250 | 15 | 120 | 23 | 140×172 | |
| FS2F370E20S170A | 532 | 370 | 20 | 170 | 19.9 | 145×164 | |
| FS2F400E20S50TA | 532 | 400 | 20 | 50 | 3.1 | 110×87 | *2 |
| FS2F600E30S230A | 532 | 600 | 30 | 230 | 8.5 | 206×162 | |
| FS2F633E30S300A | 532 | 633 | 30 | 300 | 13 | 158×88 |
*1：In stock *2：Mount thread(M85) *3：Demonstration product
YAG THG / UV laser
（Wavelength : 355nm, Material : Fused silica）
Scroll horizontally
| Optical Design No. | Wavelength (nm) |
Effective Focal Length (mm) |
Entrance Pupil Diameter (mmø) |
Scanning Area (mm sq.) |
Telecentric error (degrees) | Max outside size (diameter (rmm) × length (mm)) | Remarks |
|---|---|---|---|---|---|---|---|
| FU3F100.2E10S35TA | 355 | 100.2 | 10 | 35 | 1.2 | 99×78.7 | *1,*2,*3 |
| FS3F77E15S10TA | 355 | 77 | 15 | 10 | 0.6 | 81×153 | *2 |
| FS3F86E7S20TA | 355 | 86 | 7 | 20 | 2.9 | 105×111 | |
| FS3F100E4S34TA | 355 | 100 | 4 | 34 | 2.5 | 130×113 | |
| FS3F100E10S36TA | 355 | 100 | 10 | 36 | 1.3 | 130×110 | |
| FS3F100E12S25TA | 355 | 100 | 12 | 25 | 3.5 | 122×125 | |
| FS3F100E12S35TA | 355 | 100 | 12 | 35 | 3 | 120×111 | *3 |
| FS3F110E9S50TA | 355 | 110 | 9 | 50 | 2.9 | 125×149 | |
| FS3F112E8S50TA | 355 | 112 | 8 | 50 | 2.7 | 120×150 | *3 |
| FS3F125E9S50TA | 355 | 125 | 9 | 50 | 1.8 | 120×96 | |
| FS3F150E15S50TA | 355 | 150 | 15 | 50 | 1.2 | 154×124 | |
| FS3F160E13S50TA | 355 | 160 | 13 | 50 | 1.6 | 120×110 | |
| FS3F170E10S65A | 355 | 170 | 10 | 65 | 6.3 | 104×66 | *2 |
| FS3F175E30S35TA | 355 | 175 | 30 | 35 | 0.9 | 135×141 | |
| FS3F240E13S75TA | 355 | 240 | 13 | 75 | 3.2 | 122×130 | |
| FS3F257E6S106TA | 355 | 257 | 6 | 106 | 0.8 | 197×268 | |
| FS3F290E10S100TA | 355 | 290 | 10 | 100 | 0.6 | 192×248 | *2 |
| FS3F300E4S54TA | 355 | 300 | 4 | 54 | 4.5 | 85×72 | |
| FS3F350E15S120A | 355 | 350 | 15 | 120 | 14 | 135×201 | |
| FS3F350E30S75TA | 355 | 350 | 30 | 75 | 3.3 | 131×120 | |
| FS3F400E10S200A | 355 | 400 | 10 | 200 | 12.1 | 130×87 | |
| FS3F400E20S50TA | 355 | 400 | 20 | 50 | 3.1 | 130×87 | *2,*3 |
| FS3F430E20S100A | 355 | 430 | 20 | 100 | 5.9 | 136×207 | *2 |
| FS3F500E10S110TA | 355 | 500 | 10 | 110 | 3.4 | 135×244 | *2 |
| FS3F630E30S300A | 355 | 630 | 30 | 300 | 19.9 | 180×202 |
*1：In stock *2：Mount thread(M85) *3：Demonstration product
YAG FHG / DUV laser
（Wavelength : 266nm, Material : Fused silica）
Scroll horizontally
| Optical Design No. | Wavelength (nm) |
Effective Focal Length (mm) |
Entrance Pupil Diameter (mmø) |
Scanning Area (mm sq.) |
Telecentric error (degrees) | Max outside size (diameter (rmm) × length (mm)) | Remarks |
|---|---|---|---|---|---|---|---|
| FS4F100E4S34TA | 266 | 100 | 4 | 34 | 2.5 | 130×113 | |
| FS4F100E10S30TA | 266 | 100 | 10 | 30 | 2.3 | 110×143 | |
| FS4F125E9S40TA | 266 | 125 | 9 | 40 | 1.7 | 128×103 | |
| FS4F220E10S80TA | 266 | 220 | 10 | 80 | 4.5 | 127×117 | *2 |
| FS4F250E10S50TA | 266 | 250 | 10 | 50 | 4.8 | 89×96 | *2 |
*2：Mount thread(M85)
*Various customized models can be provided. Please inquire regarding specific needs.
