■ Dedicated Machining

For Stator Housing/Bearing Mounting Hole Drilling

Special Composite Boring Tools

・Composite tools realise excellent machining accuracy and dramatically reduced cycle time
・Optimised balance between tool weight and rigidity based on advanced stress analysis and actual performance data
For Simultaneous Machining of Grooves

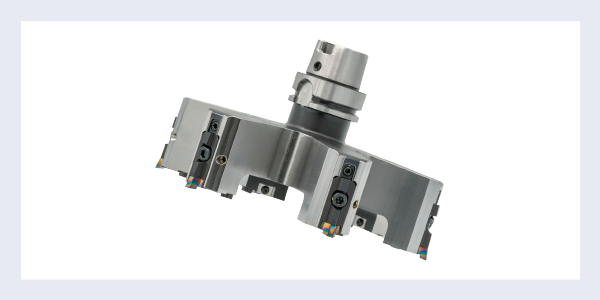

Slotting Tools

Multi-tooth tools dramatically reduce grooving cycle time
Based on stress analysis, tools are both lightweight and rigid.

Drilling

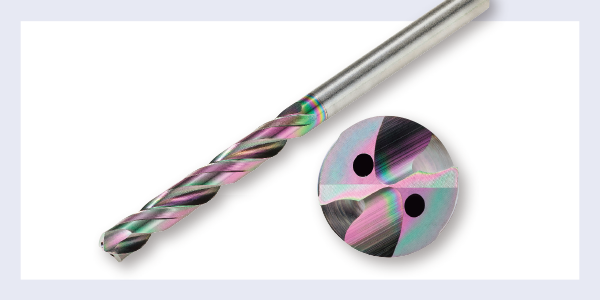

MULTIDRILL

MDA series

Diameter：ø1.0 to 12.0mm
L/D： ø3.0mm or less：3, 5, 10, 15, 20
ø3.1mm or more：3, 5, 10

Milling

Inverter/Converter Cases

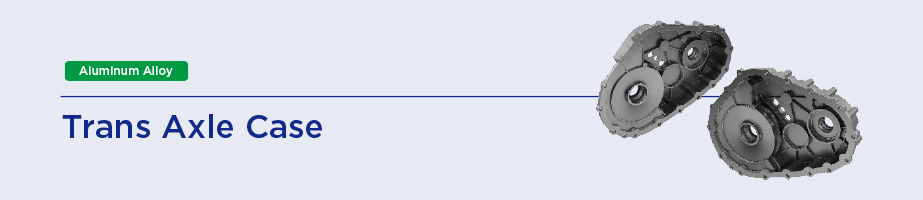

Transaxle Case

■ Dedicated Machining

For Bearing Mounting Hole Drilling

1-Pass Roughing and Finishing Tools

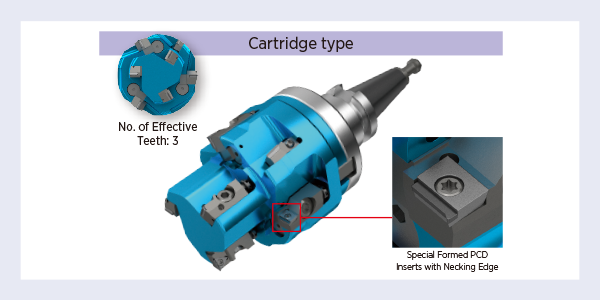

Cartridge type

The use of three formed inserts enables one-pass finishing even with pre-cast hole materials with large allowance variations
The introduction of a parallel adjustment mechanism maintains high perpendicular accuracy even when diameter height is adjusted
The use of an aluminum alloy body also enables use on small machining centres with cutter weight limitations
For Bearing Mounting Hole Drilling

1-Pass Roughing and Finishing Tools

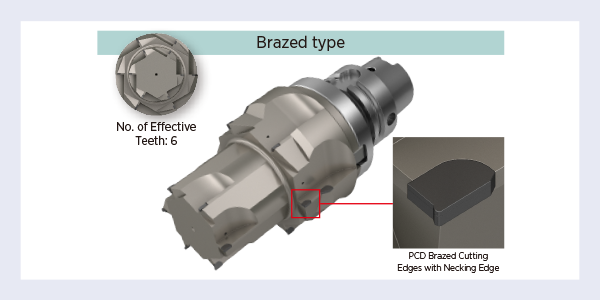

Brazed type

By brazing the PCD edges directly to the body, the number of effective cutting teeth on the formed cutter can be increased (from 3 to 6), achieving even higher efficiency machining

Drilling

MULTIDRILL

MDA series

Diameter：ø1.0 to 12.0mm
L/D： ø3.0mm or less：3, 5, 10, 15, 20
ø3.1mm or more：3, 5, 10
For Pre-cast Hole Drilling

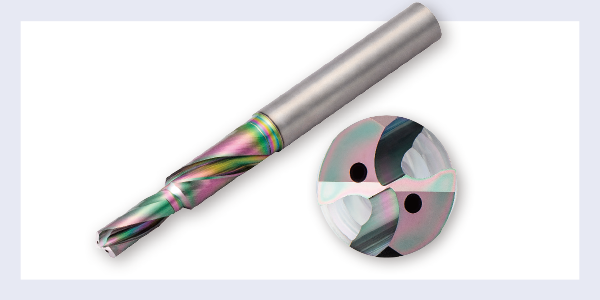

DLC Coat High-efficiency Drills

Diameter：ø5.0 to 12.0mm
(large dia. max. ø16.0mm)

Reaming

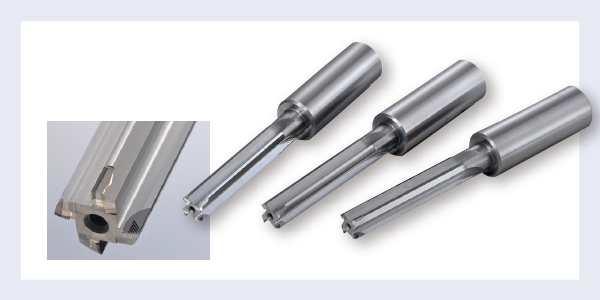

PCD Reamers with Chip Breaking Function

Diameter：ø5.0mm up

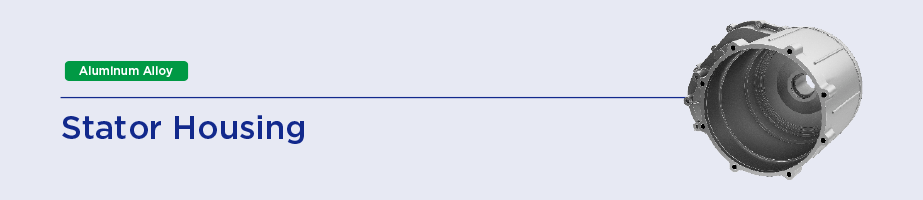

Stator Housings
Inverter/Converter Cases
