Sumitomo Electric Industries, Ltd. (head office: Chuo-ku, Osaka, President: Osamu Inoue, hereafter "our company") has developed and launched the high-efficiency, high-rigidity radius cutter SEC-Wave Radius Mill RSE Type for sale as of November 2021.

The turbine blades in aircraft and electrical generators use stainless steel as well as exotic alloys such as nickel-based heat-resistant alloys and titanium alloys. In machining turbine blades, the volume to be machined is large and from the perspective of machining efficiency, there is an increasing need for higher cutting speeds and feedrates.

In response to these needs, our company has developed the SEC-Wave Radius Mill RSE Type. The SEC-Wave Radius Mill RSE Type was designed to maximise the rigidity of the insert seat face on which the insert is located, exhibiting excellent durability even in high-load machining. In addition, the use of the newly developed ACS2500/ACS3000 insert grades (for exotic alloy machining) realises excellent stability and longer tool life. Apart from the high-precision 4-cornered ground type inserts, the lineup also includes highly economical M Class* 8-cornered inserts; both insert types can be used with the same cutter body depending on the application.

*M Class
Insert tolerance. Tolerances of corner height (±0.08mm to ±0.2mm), thickness (±0.13mm), and inscribed circle (±0.05 to ±0.15mm).

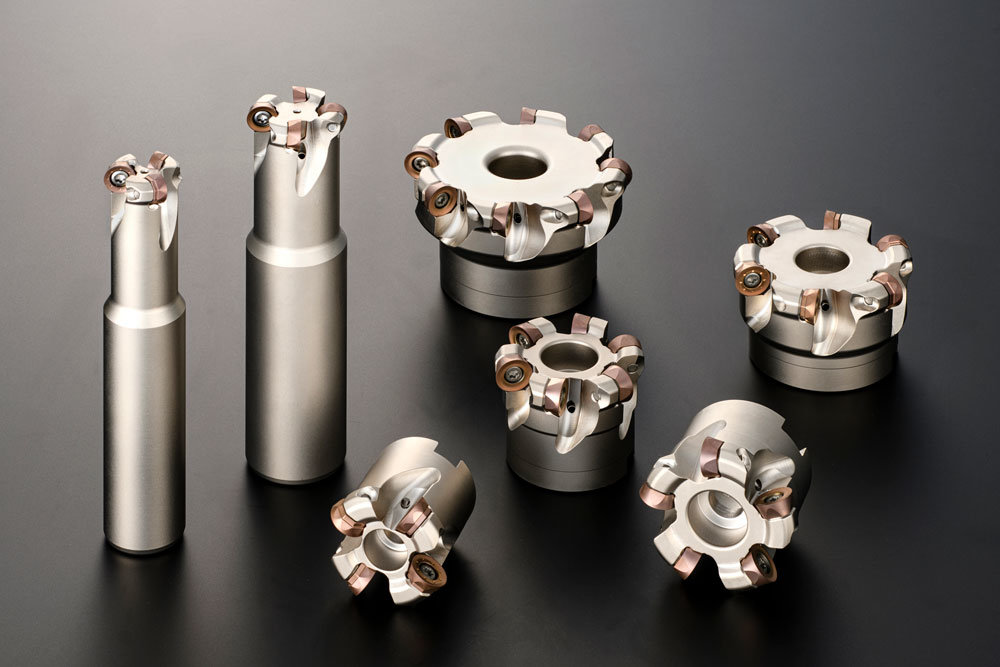

SEC-Wave Radius Mill RSE Type

1. Features

High-efficiency/high-rigidity radius cutter
High-rigidity insert seat face design, capable of high-efficiency machining of materials such as stainless steel and exotic alloys, realising excellent durability.

Uses new grades for exotic alloy machining
In combination with the newly developed ACS2500/ACS3000 insert grades for exotic alloy machining, stable and long tool life is realised even in machining of difficult-to-cut alloys such as nickel-based heat-resistant alloys and titanium alloys.

Inserts can be selected from high-accuracy specifications or economical focus
In addition to high-precision 4-cornered ground type inserts, the lineup includes highly economical M Class 8-cornered inserts.


2. Lineup

Body (Total of 14 Cat. Nos.)
 RSE10 Type (Shell Type) Cutter Diameter ø40 to ø50mm 2 Cat. Nos.
 RSE10 Type (Shank Type) Cutter Diameter ø25 to ø32mm 4 Cat. Nos.
 RSE12 Type (Shell Type) Cutter Diameter ø40 to ø80mm 8 Cat. Nos.

Insert (Total of 6 Cat. Nos.) 2 Grades


3. Sales Plan

100 million JPY/year in the first year, 200 million JPY/year after 2 years


4. Price

Body: 30,000 to 80,000 JPY (excluding tax)

Insert: 880 to 1,650 JPY (excluding tax)
