Carbide Materials

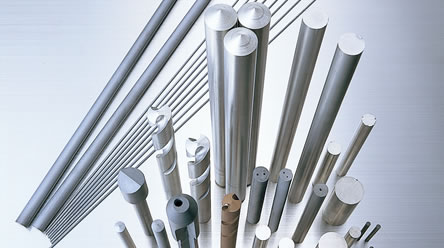

Cemented Carbide Rod Blanks

We offer the best IGETALLOY grades optimized for a variety of applications, including endmills, drills, and reamers; that demand strength, toughness and wear-resistance of the cutting edges.

  • Stocked Grades

    Super ultra fine grained carbide "AF1"
    Ultra fine grained carbide "A1"
    Fine grained carbide "H1"
    General cemented carbide "EH10"
    Other grades can be made-to-order.

    Product Configurations

    Standard sintered rods
    Endmill blanks
    Drill blanks
    PCB drill blanks
    Rod blanks with oil-holes

  • Dimension of Standard Mill Scale Rod

    Outer diameter ø1.0 to 8.0mm (in increments of 0.5mm)
    Outer diameter ø9.0 to 20.0mm (in increments of 1mm)
    Length 50, 80, 100, or 310mm

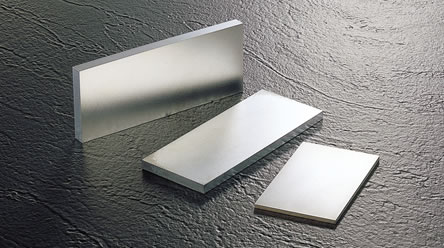

Cemented Carbide Plate Blanks

An extensive lineup of stocked grades including the super ultra fine grained carbide "AF1" for molds.

  • Stocked Grades

    Super ultra fine grained carbide "AF1"
    Ultra fine grained carbide "A1"
    "KH Series" KH03/KH05
    Other grades can be made-to-order.

  • Dimensions of Stocked Plates

    Length 100mm, width 60mm, thickness from 1.2 to 4.0mm
    Length 150mm, width 60mm, thickness from 2.0 to 10.0mm

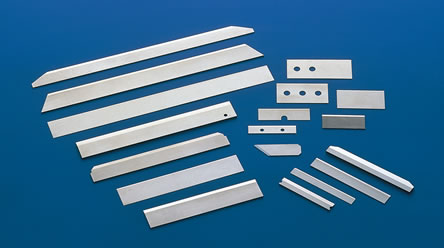

Cemented Carbide Thin Blades

The excellent edge integrity of ultra fine grained carbides exhibit superiority in cutting tape, fabric and paper.

  • Stocked Grades

    Super ultra fine grained carbide "AF1"
    Ultra fine grained carbide "A1"
    Other grades can be made-to-order.

    Cutting Edge Shapes (Typical)

    Double-edged
    Two-stepped
    Drilled blanks

  • Allowable Range for Manufacturing

    Min. thickness: 0.08mm, Max. length: 200mm (The straightness of thickness 0.08mm × length 200mm will be 0.1mm.)
