Sumitomo Electric Industries, Ltd. (head office: Chuo-ku, Osaka, President: Osamu Inoue, hereafter "our company") has expanded the holder range for Indexable Drill SEC-MULTIDRILL SMD Type and developed the Indexable Head MSL Type, launched for sale as of April 2021.
In recent years, there is an increasing demand for medium and large diameter indexable head type drills used in machining operations, in order to reduce tool costs and enable easier tool management; as well as the need for improved drilling stability and chip control performance.
To handle various tooling needs, our company has expanded its range of holders combining improved rigidity and chip evacuation, providing even greater stability than conventional tools. In addition, we have also developed the Indexable Head MSL Type, with an emphasis on cutting edge sharpness, to handle drilling of mild steel and stainless steel with poor machinability; thus realising excellent chip evacuation performance and stable machining.

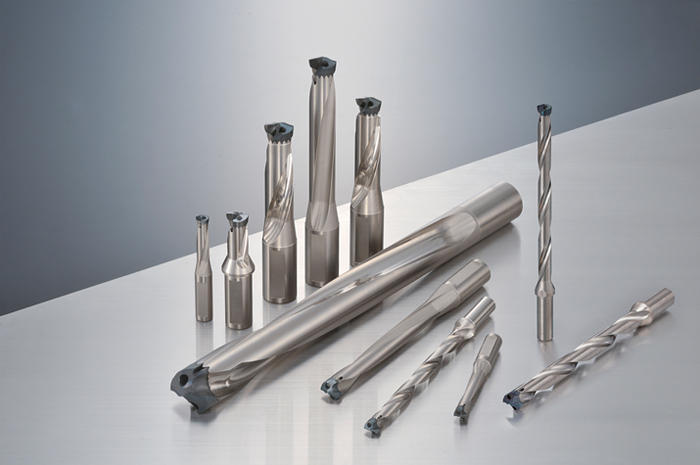

SEC-MULTIDRILL SMD Type Expanded Holders and Indexable Head MSL Type
1. Features
■ Superb machining stability
Flanged holder design suppresses vibration during machining. Optimised web thinning improves drilling and realises good hole accuracy.
■ Excellent chip evacuation performance
Linear cutting edge shape with a focus on sharpness suppresses chip elongation and collapse. Furthermore, the helix-grooved holder improves chip evacuation.
■ Holder lineup supporting diverse retaining tools
Supports various tool holding methods with flat type for side-locking and round shank type for collets and milling chucks, etc.
2. Lineup
Holders (expanded)
Diameter ø12 to ø30.8mm, 148 Cat. Nos.
Indexable Head MSL Type
Diameter ø12 to ø30.8mm, 189 Cat. Nos.
3. Sales Plan
120 million JPY/year in the first year, 340 million JPY/year after 2 years
4. Price
Holders
38,300 to 175,000 JPY (excluding tax)
Heads
8,470 to 19,100 JPY (excluding tax)
