Coated Carbide Grade for Small Product Turning

AC1135U

Versatile Coated Carbide Grade Specialized for Small Lathe/Autolathe Machining
Machining of stainless steel, as well as a variety of other work materials

Work Material

Video

Feature

Versatile Coated Carbide Grade Specialized for Small Lathe/Autolathe Machining
Machining of stainless steel, as well as a variety of other work materials

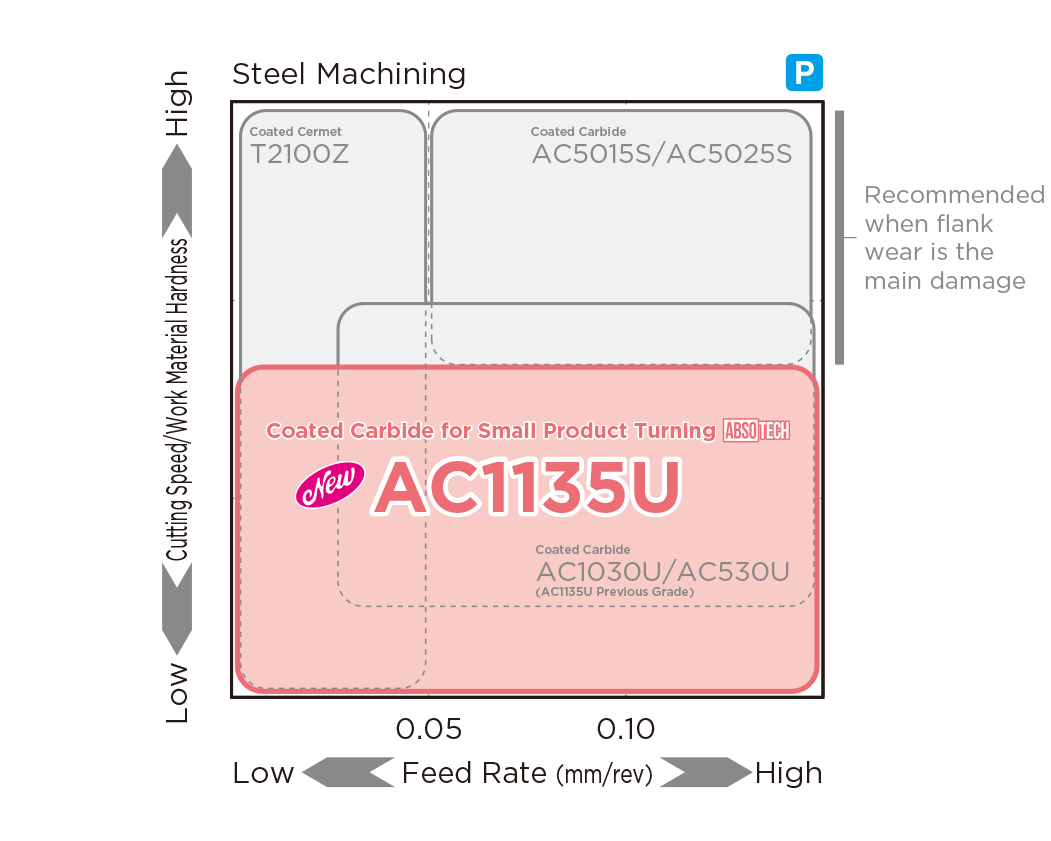

Application Range

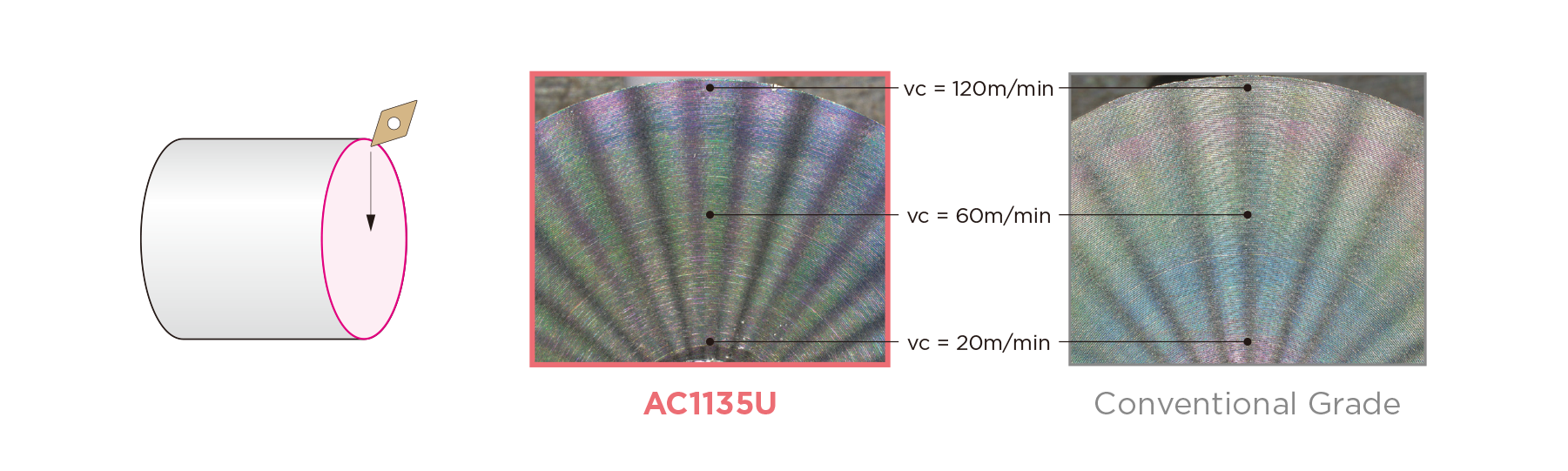

■ Machined Surface Quality in Facing (Stainless Steel)

Excellent machined surface quality even at low speeds

Work Material: SUS316L Continuous Cutting Insert: DCGT11T302 Cutting Conditions: ｎ = 1,800min-1 f = 0.05mm/rev ap = 0.5mm Wet (oil-based)

■ Machined Surface Quality in External Grooving (Stainless Steel)

Machined surface quality superior to conventional grades

Work Material: SUS316L Continuous Cutting ø10mm Insert: DCGT11T302 Cutting Conditions: vc = 120m/min f = 0.05mm/rev ap = 0.5mm Wet (oil-based)

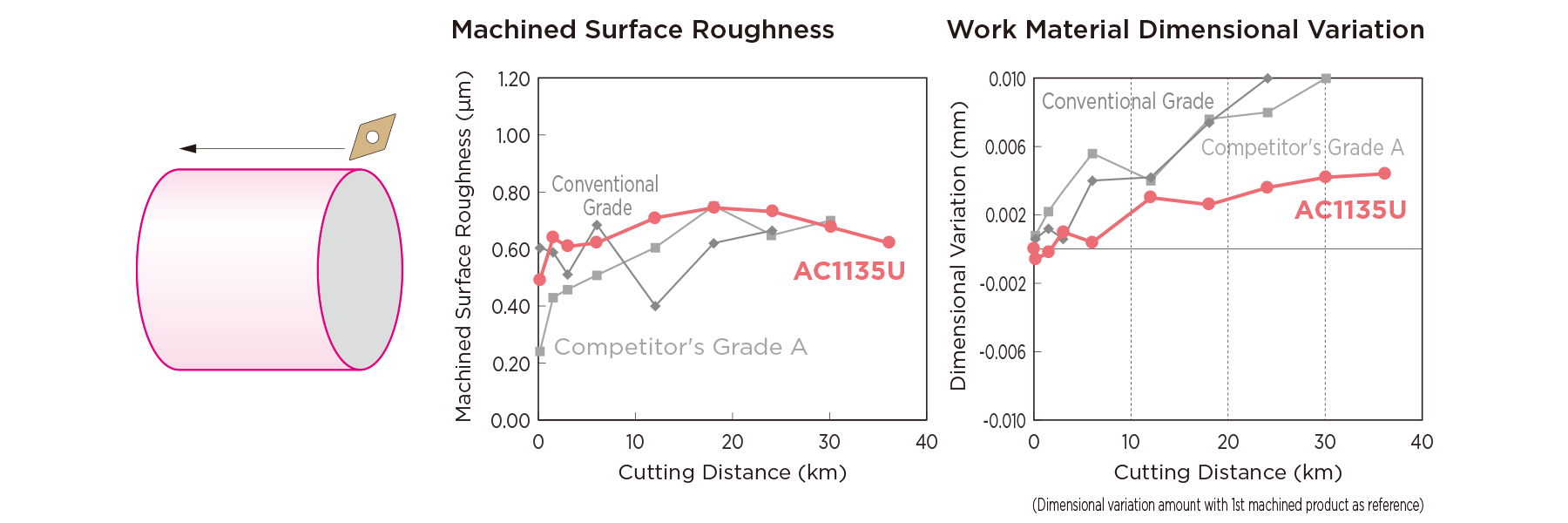

■ Stability in External Grooving (Stainless Steel)

Machined surface quality and dimensional accuracy can be maintained over a longer period

Work Material: SUS316L Continuous Cutting ø10mm L = 14mm Insert: DCGT11T302 Cutting Conditions: vc = 120m/min f = 0.05mm/rev ap = 0.5mm Wet (oil-based)

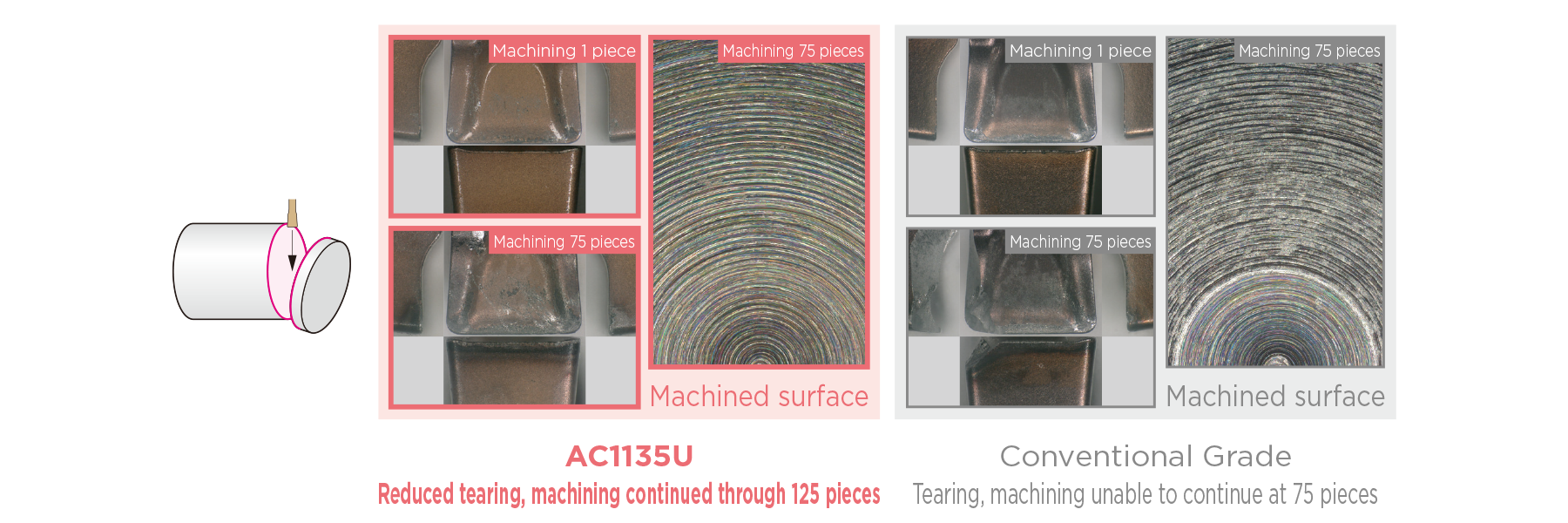

■ Machined Surface Quality in Cut-off Machining (Stainless Steel)

Achieves 1.7x longer tool life than conventional grades and reduced tearing on machine surface

Work Material: SUS316L Cut-off ø10mm Insert: GCMN2002-GF Cutting Conditions: n = 3,000min-1 f = 0.05mm/rev Wet (oil-based)
