High-Productivity High-Feed Cutter for Rough Milling
SEC-Sumi Dual Mill DMSL series / DMSW series
For ultra-high-feeds and large depths of cut
Recommended Work Material
- P
- M
- K
- S
- H
Feature
For ultra-high-feeds and large depths of cut

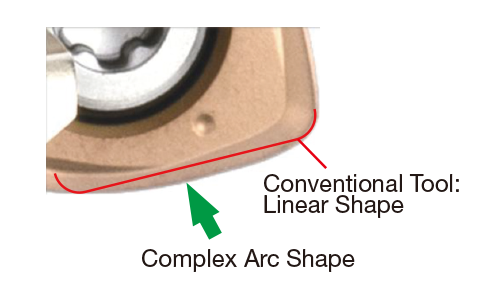

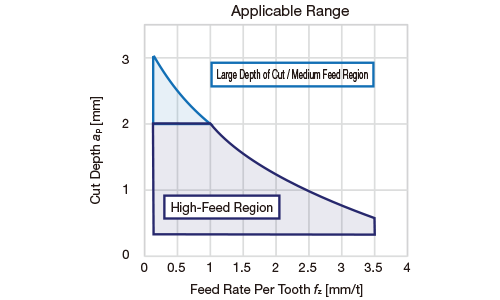

Complex arc-shaped cutting edge achieves a smaller cutting angle and a larger depth of cut simultaneously.High-efficiency machining at maximum feed rate per tooth of 3.5mm/t is possible.

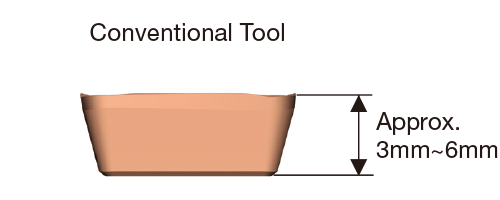

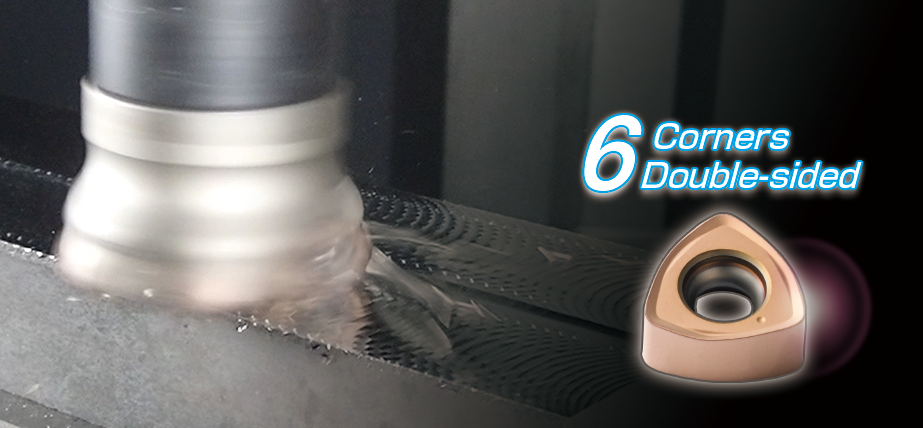

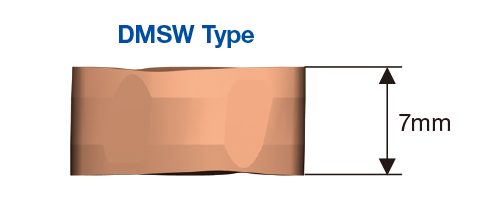

Economical double-sided insert with 6-corner specification. Reassuringly thick at 7mm.

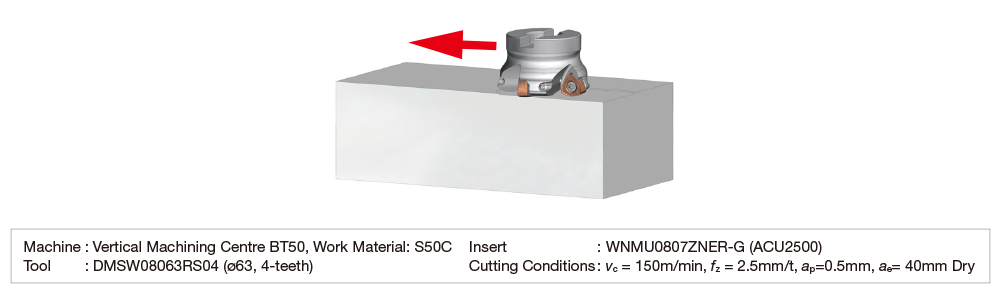

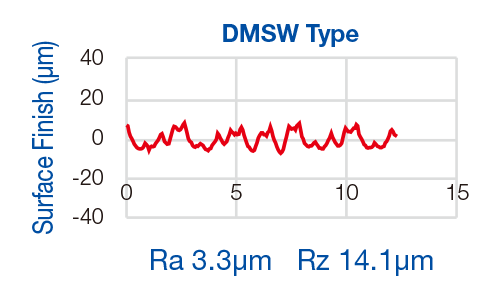

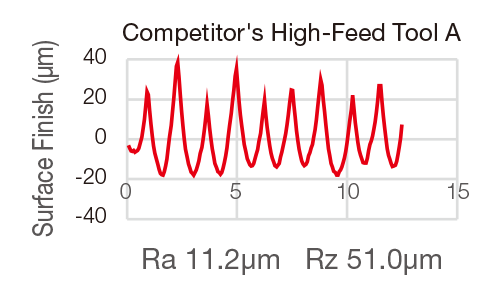

Even at high feedrates of 2.0mm/t or more, a reasonable surface finish can be attained without a wiper insert.
Product Inquiry
Feel free to contact us for cutting and machining information
on cutting troubles and review of tooling as well as questions,
feedbacks, and requests for our home page.
