Low Resistance Tangential Insert Slotting Cutter

SEC-Sumi Dual Mill TGC series

Side cutter with excellent cutting edge sharpness realizes low resistance and low vibration milling

Recommended Work Material

Feature

Side cutter with excellent cutting edge sharpness realizes low resistance and low vibration milling

Side Cutter Suitable For A Variety Of Applications

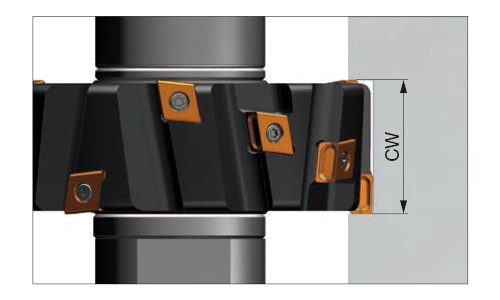

Made-to-order bodies possible with cutting width of 17mm and up

Standard design

Multi-stepped design

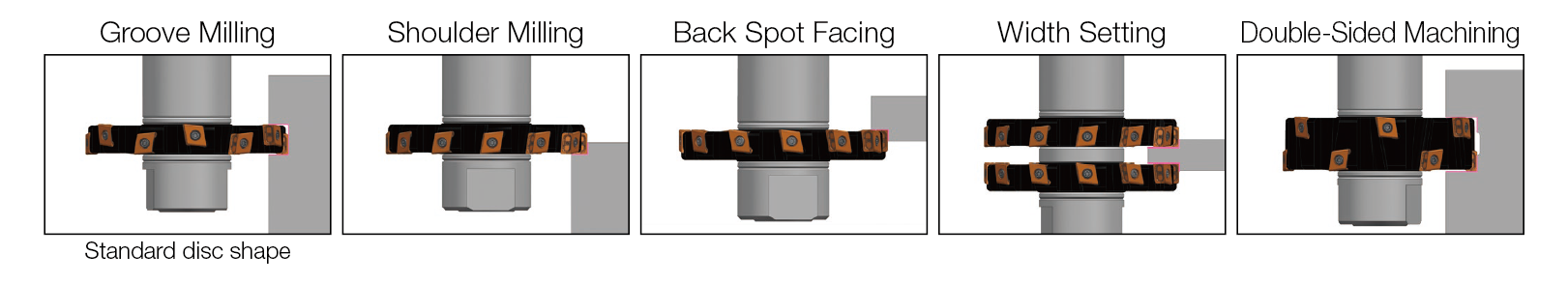

Suitable for various applications such as groove milling and shoulder milling

Realises Low Resistance and Low Vibration Milling

Design emphasizes cutting edge sharpness with +10° inclination angle
Excellent cutting edge sharpness suppresses chatter to enable stable machining

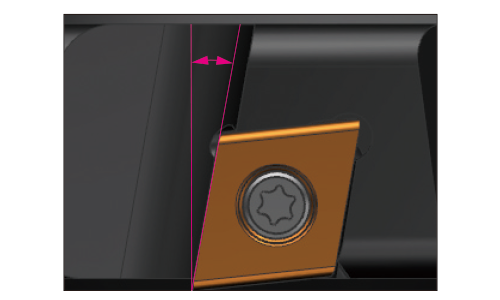

Inclination Angle

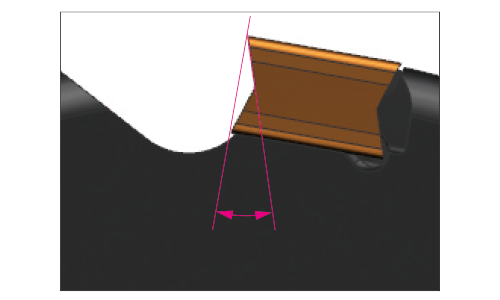

True Rake Angle

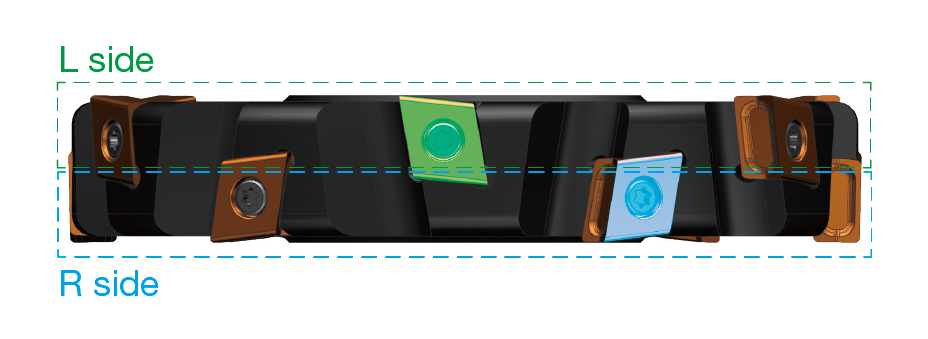

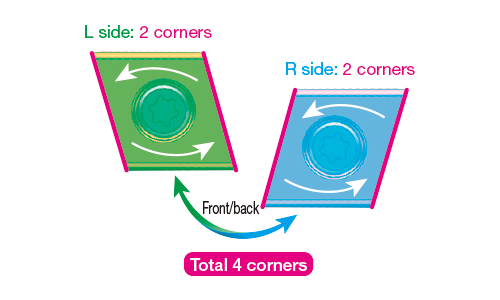

Neutral-handed 4-cornered Insert

Easy management with neutral-handed insert design that eliminates the need to align right-hand and left-hand inserts
