Dresser Blank

SUMICRYSTAL PD/PDX

Dresser Blank What’s SUMICRYSTAL PD/PDX?

SUMICRYSTAL PD and PDX are synthetic diamond single crystals processed into thin prism shapes for use as dresser blanks. Their stable performance and long tool life improve dressing precision.

Compared with bulky shaped natural diamond, improves holding power and prevents falling out.
Consistent cross section prevents deterioration.
Uniform crystal orientation promotes stable tool life.

Product Lineup

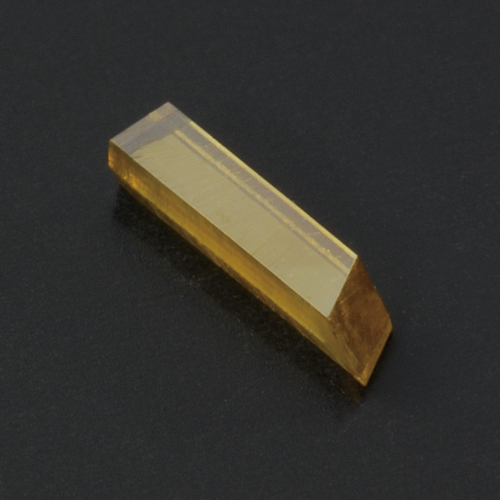

SUMICRYSTAL PD

(110) face provides high abrasive resistance even in <111> direction.

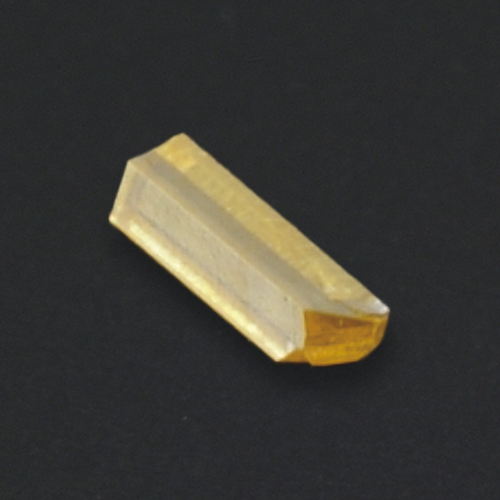

SUMICRYSTAL PD-T

You can easily identify <110> direction which provides higher abrasive resistance than <110> direction.

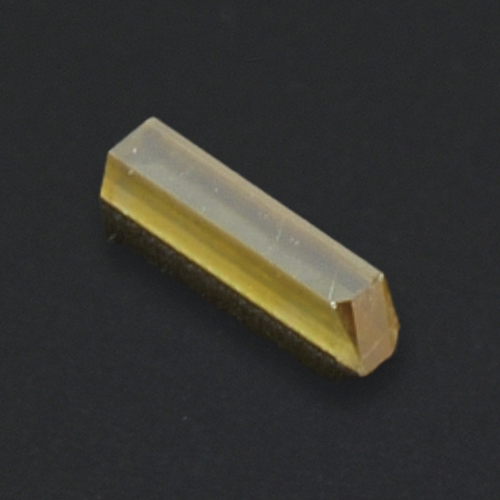

SUMICRYSTAL PDX

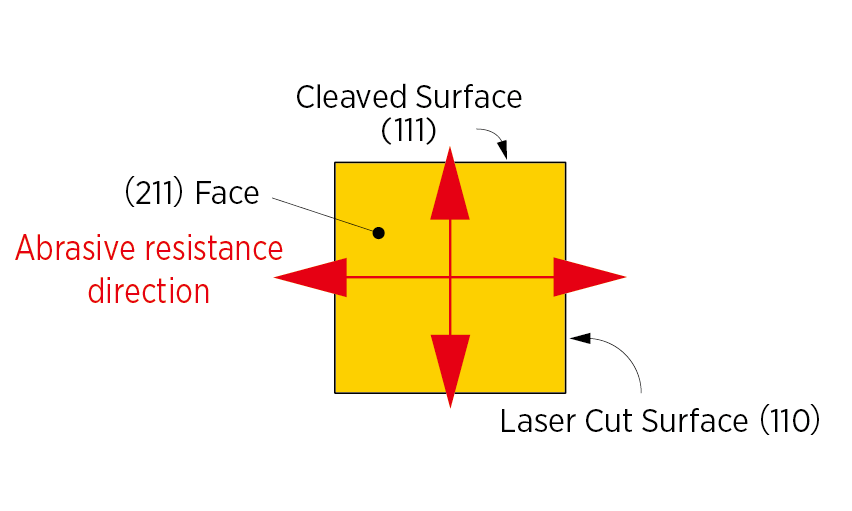

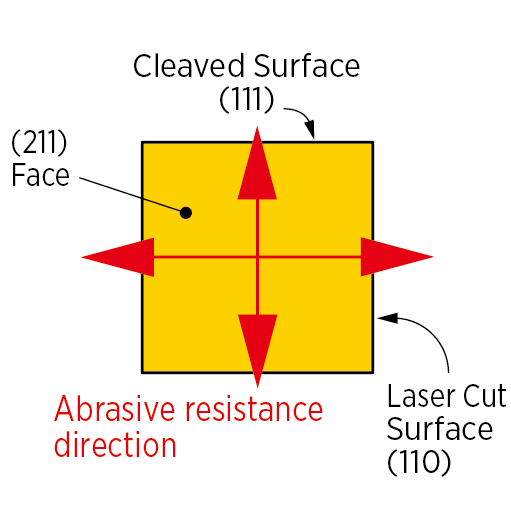

(211) face provides higher abrasive resistance than (110) face and easy to identify abrasive resistance direction.

Specification

SUMICRYSTAL PD

■ Standard Cat. No. (PD)

Scroll horizontally

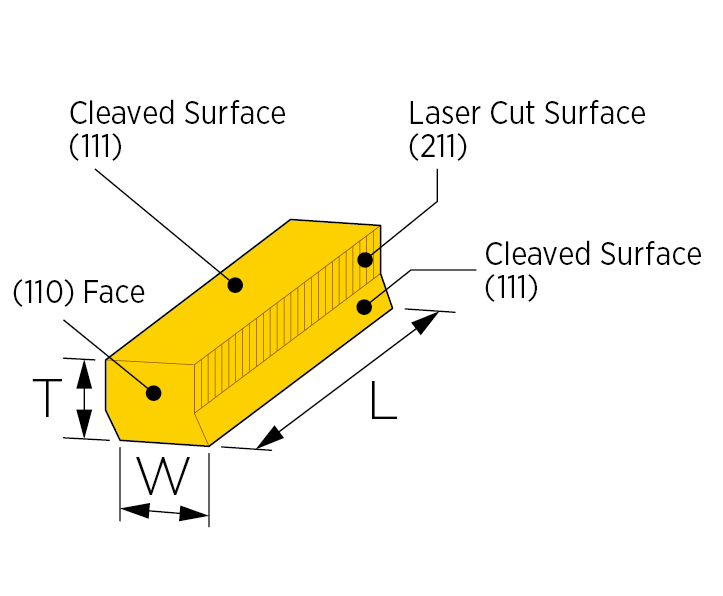

Shape	Cat. No.	Stock	T(mm)	W(mm)	L(mm)

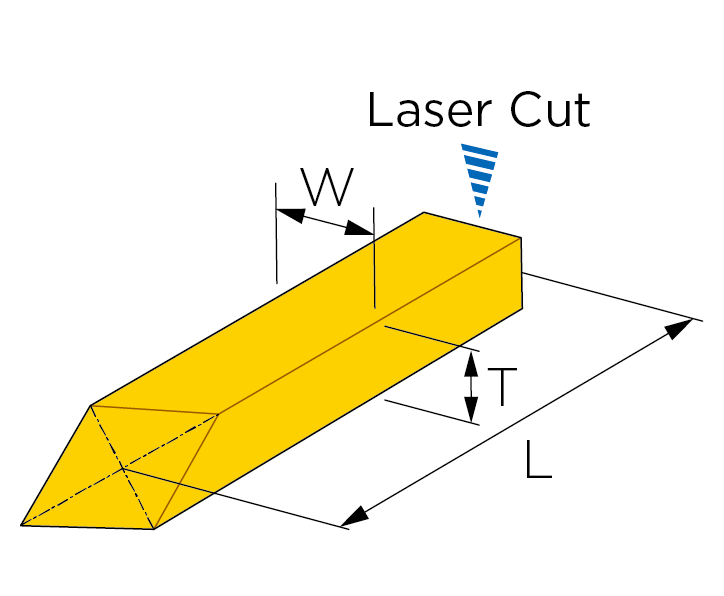

Dimension L is the distance between the center points of both ends.Both upper and lower (111) faces are cleaved.	PD 0220	●	0.2^±0.05	0.2^±0.05	2.0~2.5
	PD 0420	●	0.4^±0.05	0.4^±0.05	2.0~2.5
	PD 0630K	●	0.6^±0.1	0.6^±0.1	3.0~4.0
	PD 0640K	●			4.0~5.0
	PD 0650K	●			5.0~
	PD 0830K	●	0.8^±0.1	0.8^±0.1	3.0~4.0
	PD 0840K	●			4.0~5.0
	PD 0850K	●			5.0~
	PD 1130K	●	1.1^±0.1	1.1^±0.1	3.0~4.0
	PD 1140K	●	1.1^±0.1	1.1^±0.1	4.0~5.0

Other sizes can be ordered.These products may contain small inclusions within Sumitomo’s prescribed range.The laser cut surfaces among other product areas may have chipping within Sumitomo’s prescribed range.

■ Standard Cat. No. (PD-T)

Scroll horizontally

Shape	Cat. No.	Stock	T(mm)	W(mm)	L(mm)
The Cleaved side surface allows the abrasive resistance direction to be determined.	PD 0630TK	●	0.6^±0.1	0.6^±0.1	3.0~4.0
	PD 0640TK	●	0.6^±0.1	0.6^±0.1	4.0~5.0
	PD 0830TK	●	0.8^±0.1	0.8^±0.1	3.0~4.0
	PD 0840TK	●	0.8^±0.1	0.8^±0.1	4.0~5.0
	PD 1130TK	●	1.1^±0.1	1.1^±0.1	3.0~4.0
	PD 1140TK	●	1.1^±0.1	1.1^±0.1	4.0~5.0

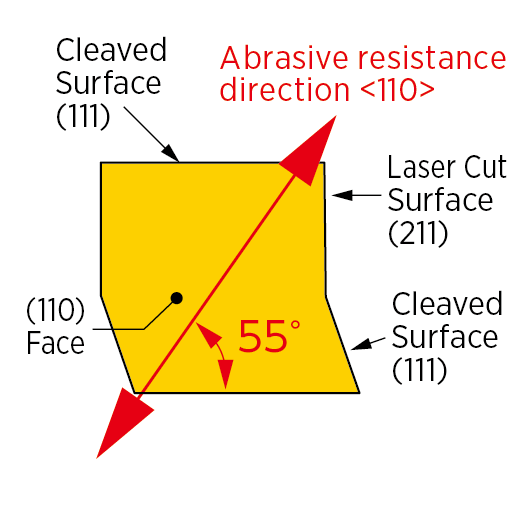

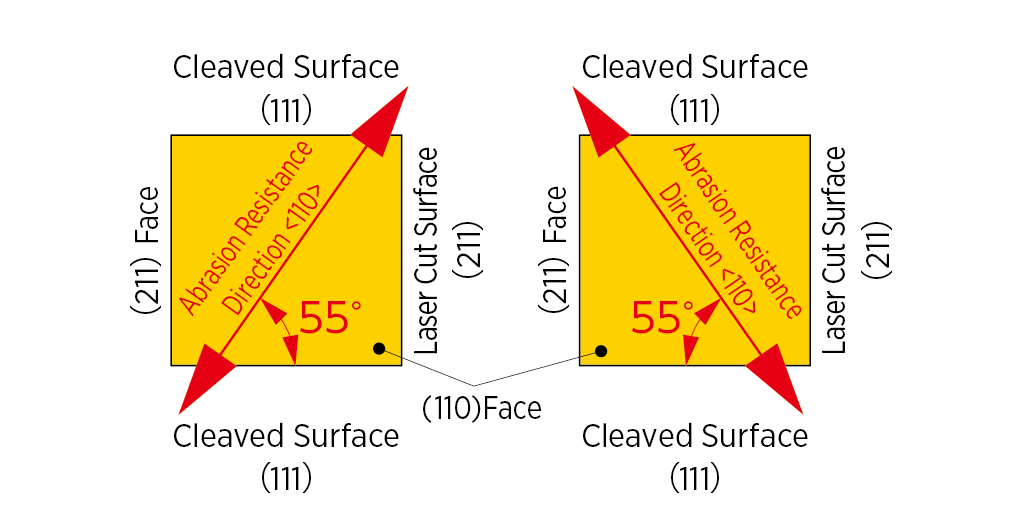

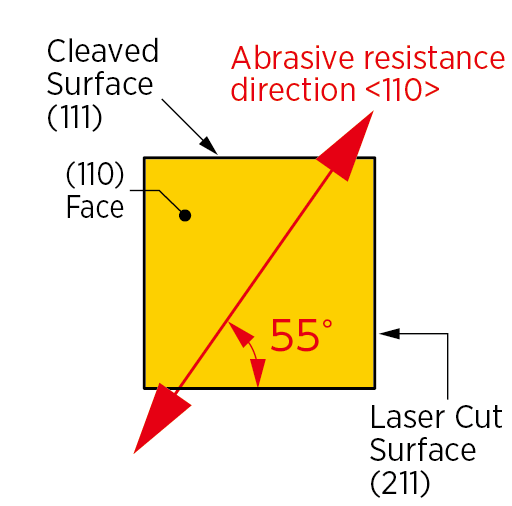

■ PD Crystal Orientation

The abrasion resistance direction is a mixture of the above two types.

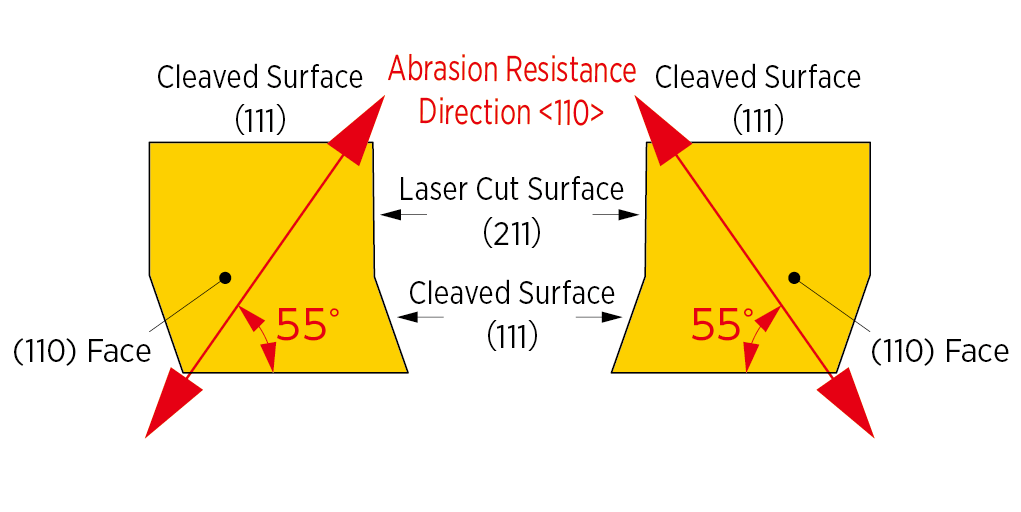

■ PD-T Crystal Orientation

The Cleaved side surface allows the abrasive resistance direction to be determined.The product contains a mixture of the above two types.

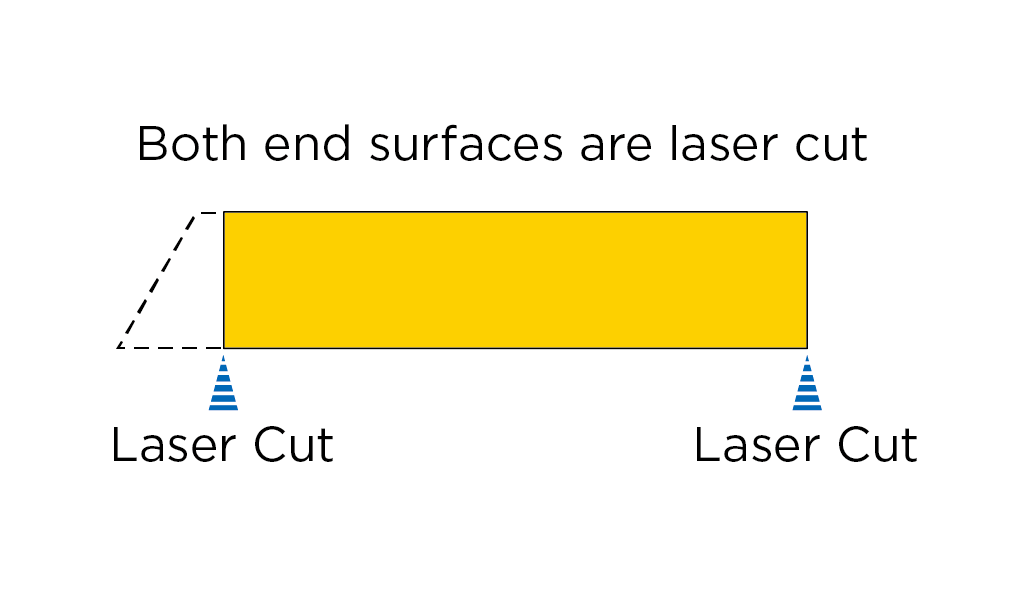

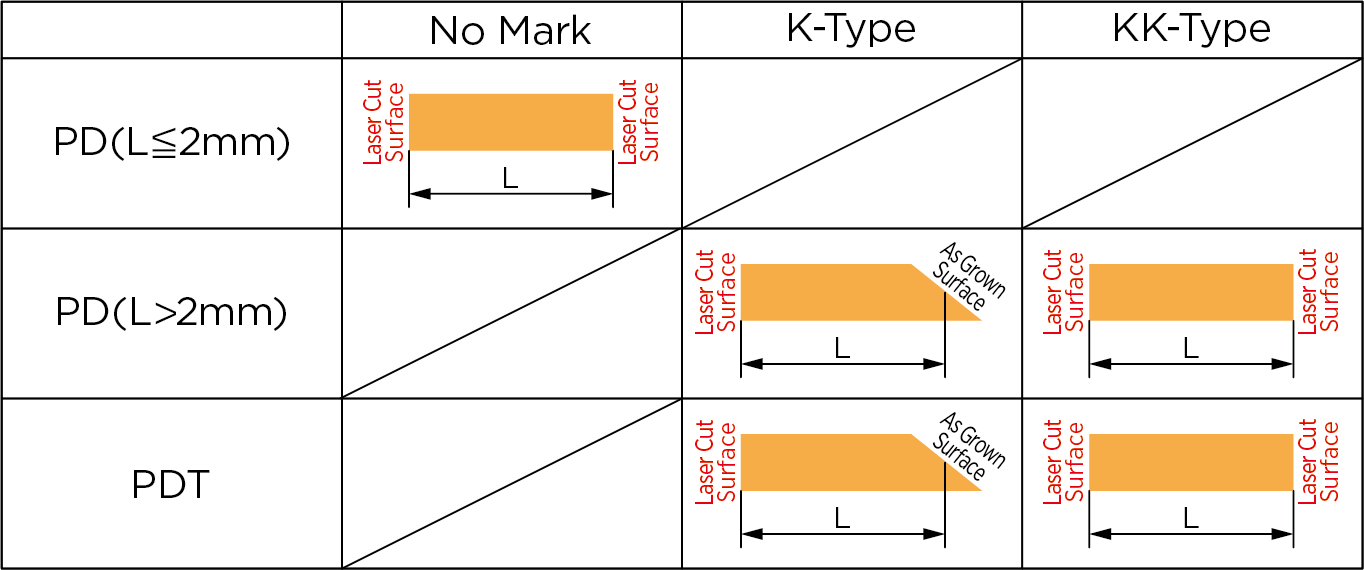

■ KK Type

In addition to the standard items listed above, “KK Type” with both ends laser-cut is available. Specify by adding “K” to the end of cat. No..
(e.g. PD〇〇〇〇KK, PD〇〇〇〇TKK)

Since PD0220 and PD0440 are originally both ends laser-cut type, there is no PD0220KK or PD0420KK.

■ Shape

SUMICRYSTAL PDX

■ Standard Cat. No. (PDX)

Scroll horizontally

Shape	Cat. No.	Stock	T(mm)	W(mm)	L(mm)
Dimension L is the distance between the center points of both ends.Both upper and lower (111) faces are cleaved.	PDX 0220	●	0.2^±0.05	0.2^±0.05	2.0^±0.1
	PDX 0320	●	0.3^±0.05	0.3^±0.05	2.0^±0.1
	PDX 0420	●	0.4^±0.05	0.4^±0.05	2.0^±0.1
	PDX 0630	●	0.6^±0.1	0.6^±0.1	3.0^±0.5
	PDX 0640	●	0.6^±0.1	0.6^±0.1	4.0^±0.5
	PDX 0830	●	0.8^±0.1	0.8^±0.1	3.0^±0.5
	PDX 0840	●	0.8^±0.1	0.8^±0.1	4.0^±0.5
	PDX 1130	●	1.1^±0.1	1.1^±0.1	3.0^±0.5
	PDX 1140	●	1.1^±0.1	1.1^±0.1	4.0^±0.5

■ Standard Cat. No. (PD-X)

■ K Type

In addition to the standard items listed above, “K Type” with both ends laser-cut is available. Specify by adding “K” to the end of cat. No..
(e.g. PDX〇〇〇〇K)

Since PDX0220 and PDX0440 are originally both ends laser-cut type, there is no PDX0220K or PDX0420K.

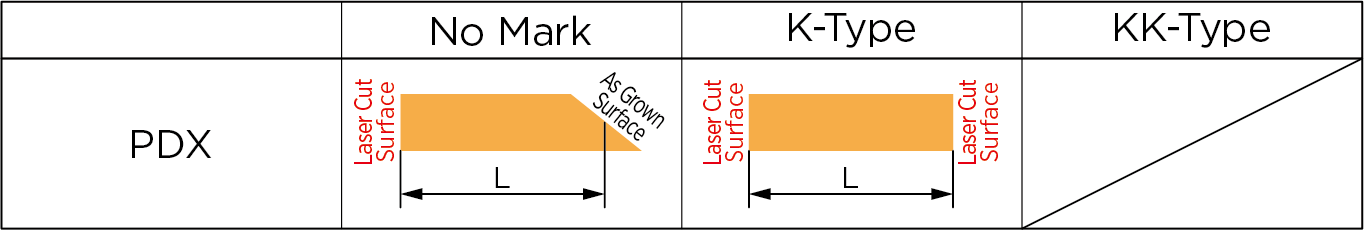

■ Shape

Frequently Asked Questions (FAQ)

What are the advantages over natural diamonds?

The aspect ratio can be made larger than that of natural diamonds, improving retention and preventing diamonds from falling off. There is no change in cross-sectional area, preventing performance degradation during use. Quality is stable with little variation. Natural diamonds do not have clear ridges, making it difficult to determine the surface orientation, but with synthetic diamonds, the surface orientation and abrasion resistance direction of the end surface can be accurately determined.

Where can I buy it?

Please use the inquiry form to let us know the model number and quantity you would require.

Diamond Material Inquiry

We will not only provide advice on product introduction,
but also provide guidance tailored to your desired application.
