SUMICRYSTAL CD

Material for Wire Drawing Dies What’s SUMICRYSTAL CD?

SUMICRYSTAL CD has optimized crystal orientation and shape as a material for wire drawing dies. Realising excellent performance through high quality and stability.

High quality crystals with few inclusions, defects and distortion are used, providing stable and high wear resistance.
All stones within the minimum guaranteed dimensions have been inspected, eliminating the need for inspection and selection of raw stones as required for natural diamonds.
It has the property of being resistant to cracks and breaks during wire drawing.
The (111) face on the top and bottom prevents oval wear and maintains good roundness.
The top and bottom surfaces are cleaved into parallel planes, eliminating the need for polishing.
The outside is machined by laser, achieving a consistent shape for easy setting.
Mounting pressure is evenly applied, ensuring sufficient strength even for small volume.

Product Lineup

SUMICRYSTAL CD

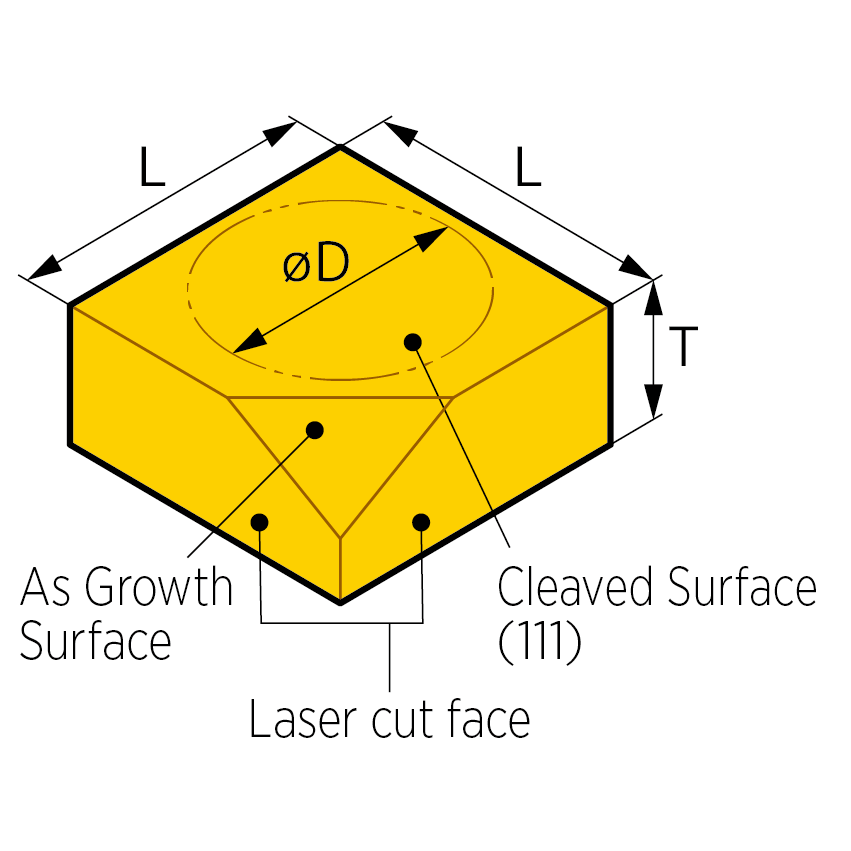

The laser cutting surface orientation is undetermined.

Specification

■ Standard Cat. No.

Scroll horizontally

Shape	Cat. No.	Stock	øD Minimum Guaranteed Dimensions (mm)	L(mm)	T(mm)
The laser cutting surface orientation is undetermined.	CD 1006 (111)	●	0.9	1.0^±0.1	0.6^±0.1
	CD 1008 (111)	●	0.9	1.0^±0.1	0.8^±0.1
	CD 1210 (111)	●	1.1	1.2^±0.1	1.0^±0.1
	CD 1411 (111)	●	1.3	1.4^±0.1	1.1^±0.1
	CD 1512 (111)	●	1.4	1.5^±0.1	1.2^±0.1
	CD 1814 (111)		1.7	1.8^±0.1	1.4^±0.1
	CD 2016 (111)		1.9	2.0^±0.1	1.6^±0.1
	CD 2318 (111)		2.2	2.3^±0.1	1.8^±0.1
	CD 2520 (111)		2.4	2.5^±0.1	2.0^±0.1

Stock No mark: Made to order *The surface orientation shown in the shape diagram is a representative value, and the actual product may have a deviation in orientation. Other sizes can be ordered. Dimension L guarantees the dimension on the face with the smaller area. The cleaved surface has a cleavage steps that is within Sumitomo’s prescribed range. Small inclusions, chipping, etc. within Sumitomo’s prescribed range may be present in the minimum guaranteed dimensions of these products. Inclusions, chipping, etc. outside the inspection range may be present outside the minimum guaranteed dimensions of these products.

SUMICRYSTAL CD

Material for Wire Drawing Dies What’s SUMICRYSTAL CD?

SUMICRYSTAL CD has optimized crystal orientation and shape as a material for wire drawing dies. Realising excellent performance through high quality and stability.

Specification

SUMICRYSTAL CD

■ Standard Cat. No.

Frequently Asked Questions (FAQ)

Can the surface orientation of the side surfaces be specified?

The surface orientation of the side surfaces cannot be specified or guaranteed.

Can polished finish be specified for the main surface?

SUMICRYSTAL CD with polished finish is not available. Use SUMICRYSTAL Substrates if needed.

Where can I buy it?

Please use the inquiry form to let us know the model number and quantity you would require.
