Substrates for R&D What’s SUMICRYSTAL Substrates?

High Pressure High Temperature(HPHT), Type Ib, Diamond Single Crystal Substrates

  • Our company began producing and selling artificial diamonds in 1985, and has consistently produced high-quality diamonds.
  • Compared to single-crystal diamonds produced by CVD method, SUMICRYSTAL is high-quality diamond with fewer defects and internal distortion.
  • SUMICRYSTAL contains a nitrogen content of several hundred ppm and have a yellowish-brown color.
  • The top and bottom surfaces are polished. The sides are laser-cut.
  • For orientation and front/back identification, a notch can also be added.

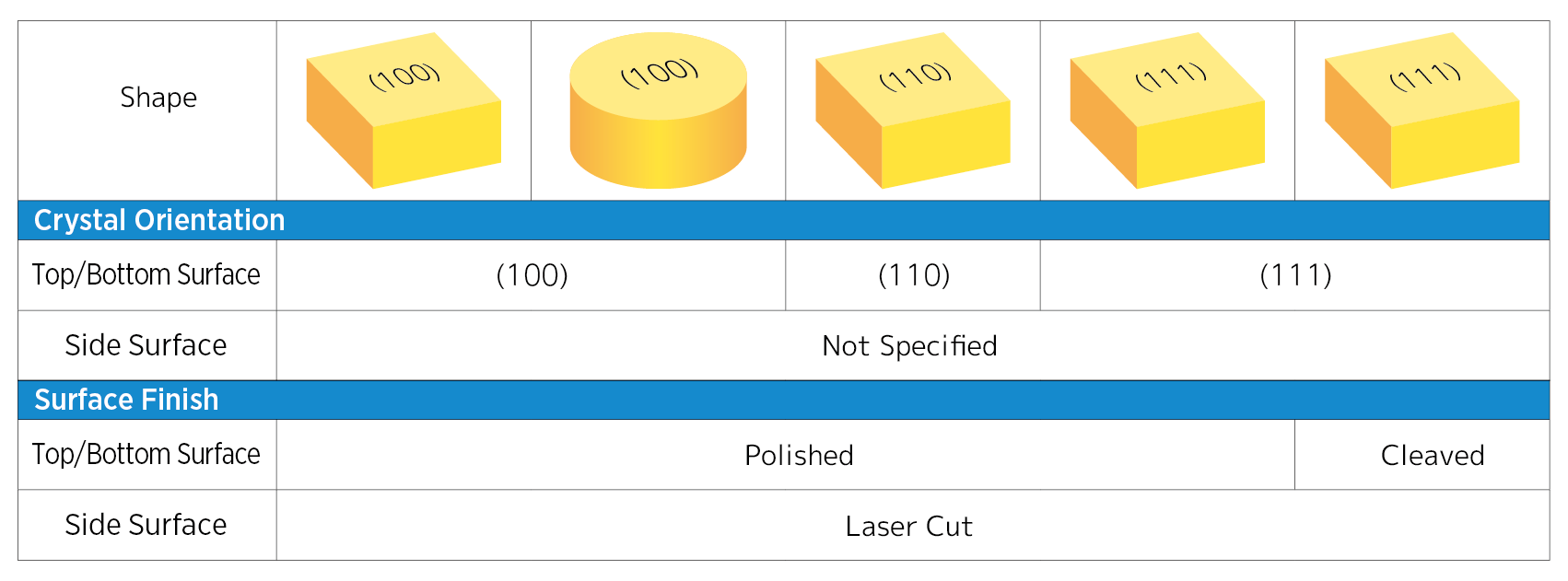

Product Lineup

Specification

Type High Pressure High Temperature(HPHT) Type Ib
Nitrogen Content 102 ppm (Not Guaranteed)
Color Yellow
Electric Resistivity (Ω⋅m) ～1014
Thermal Conductivity (W/(m⋅K)) ＜ 2,000
Crystal Orientation Main Face : (100), (110), (111)　
Side Face : Indeterminate (Can Not Specified)
Size Tolerance Length : ±0.1ｍｍ (Guaranteed Only on Smaller Side),　Thickness : ±0.1ｍｍ
Surface Finish Main Face : Polished or Cleaved on Both Sides
Side Face : Laser Cut

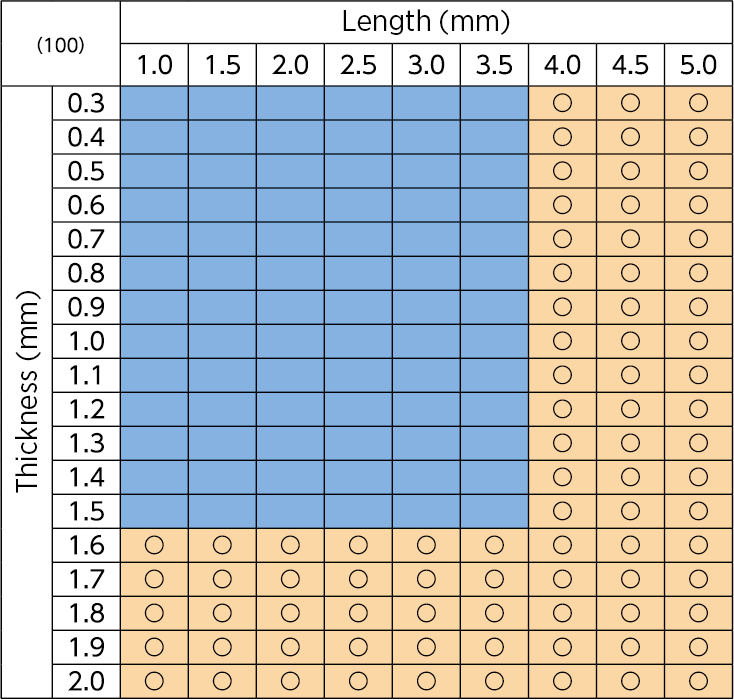

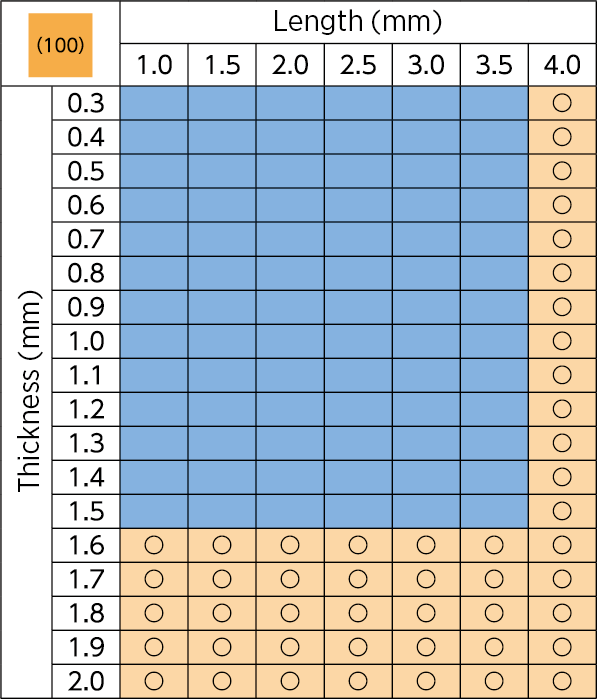

SUMICRYSTAL Substrates（100）

■ Available Size

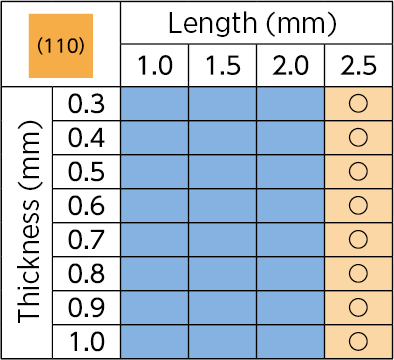

SUMICRYSTAL Substrates（110）

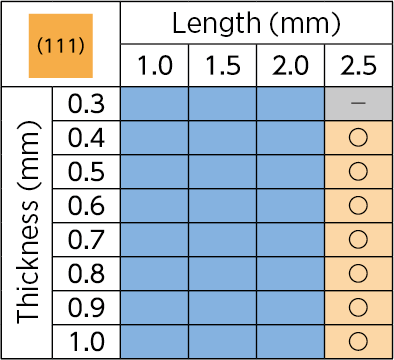

SUMICRYSTAL Substrates（111）

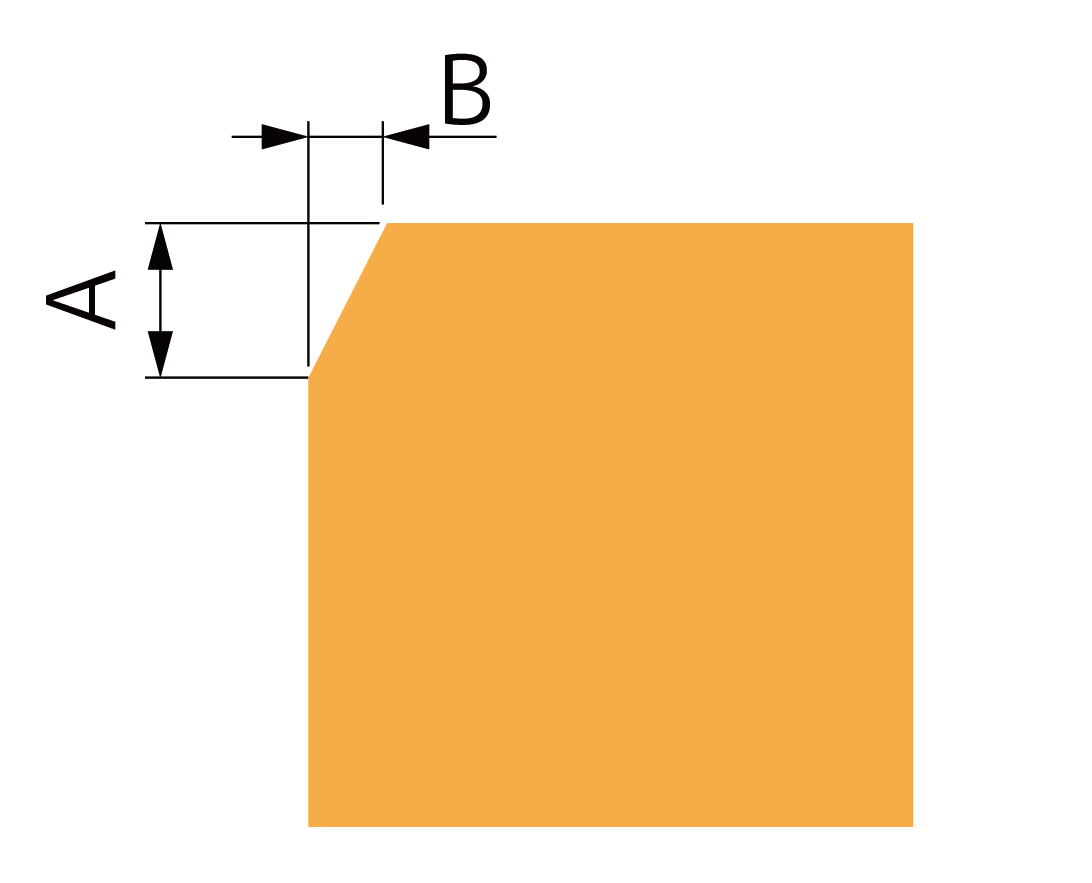

■ Corner Cut (Optional)

Corner cut for identification is available.

Outer Size ＜3x3mm AxB=0.3x0.15ｍｍ,
Outer Size ≧3x3mm AxB=0.6x0.3ｍｍ

■ Nitrogen Content

Not guaranteed. Assumed to be several hundreds of ppm.

Frequently Asked Questions (FAQ)

What’s the advantage of high pressure high temperature(HPHT) method?

Compared to CVD method, HPHT method provides high quality diamonds with fewer defects and internal distortion.

What’s the maximum size?

5mm dia or 4×4mm for (100) type, 2.5×2.5mm for (110) & (111) type.

Rectangular Substrates are available?

Yes.

Can nitrogen content be specified?

No, nitrogen content cannot be specified or guaranteed.

Where can I buy it?

Please use the inquiry form to let us know the required size(length X width X thickness), necessity of corner cut, and q’ty.
