The diffractive beam splitter is a DOE, Diffractive Optical Elements, that splits laser light into multiple beams and realizes simultaneous focusing on multiple points by combining lenses. Various beam intensity patterns are formed by line or matrix distribution.
●Can be used in conjunction with a multi-mode laser as well as with a single-mode.

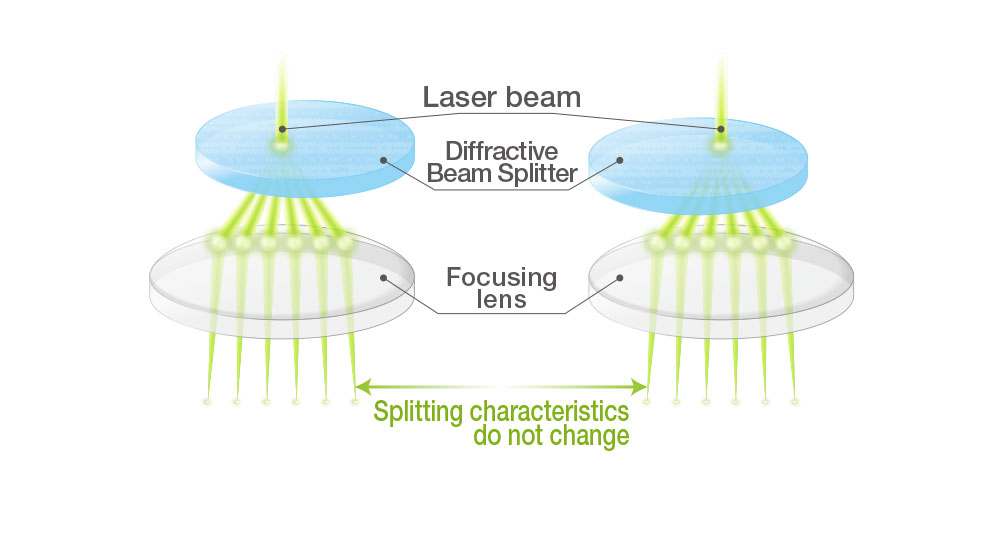

●Offers easy alignment, splitting characteristics do not depend on beam incidence position.

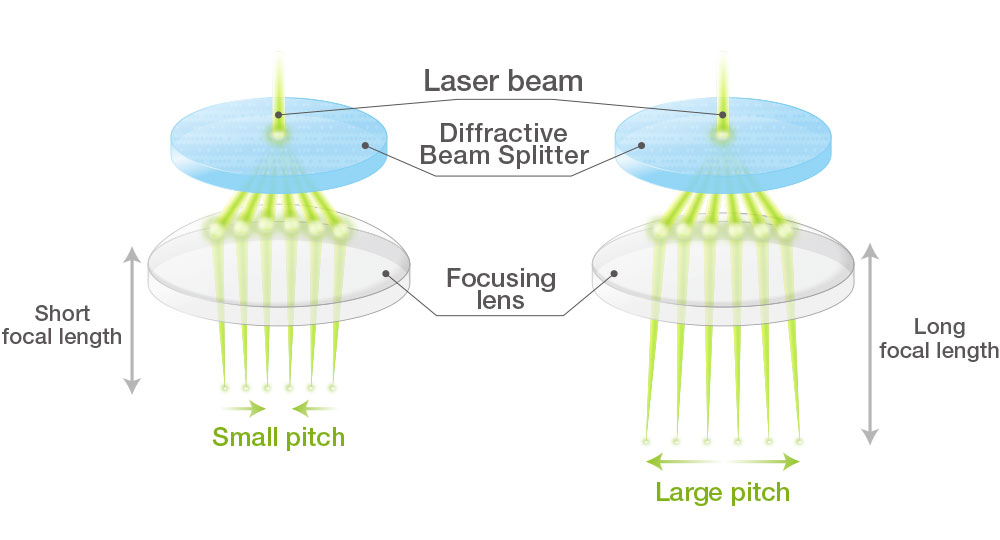

●Spot pitch is proportional to the focal length of focusing optics.

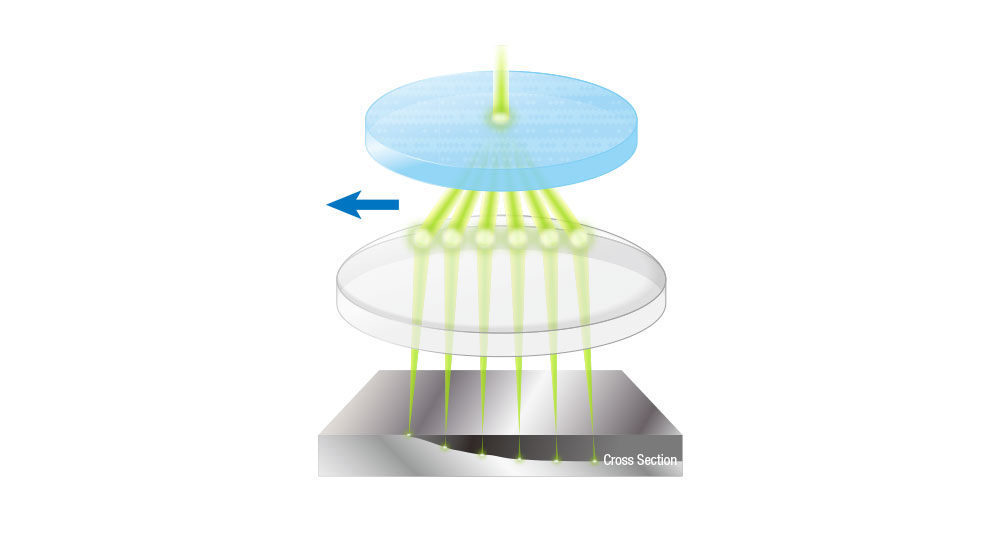

●Moving parallel to the scanning in-line beam spots parallel to their sequence can achieve deep penetration.

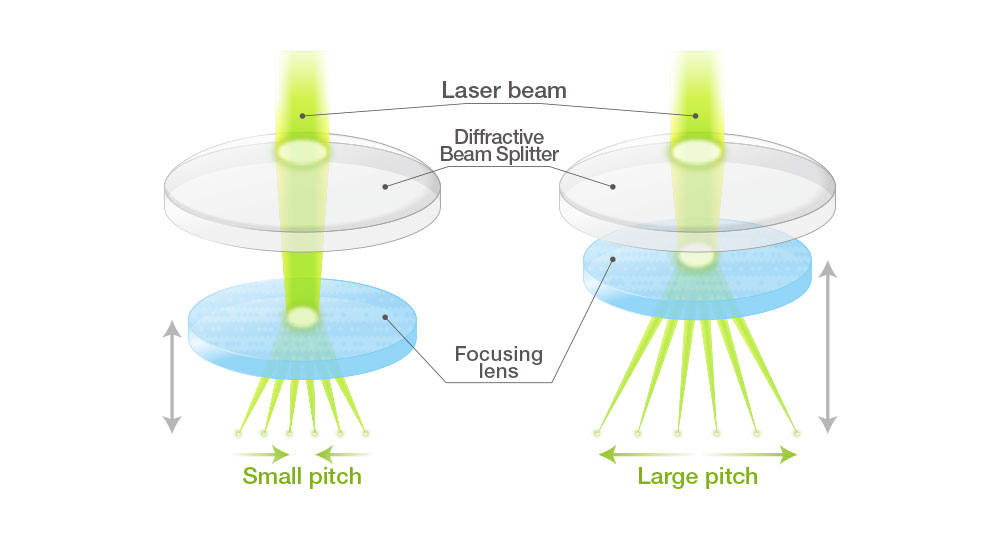

●Spot pitch adjustment is possible by positioning the Diffractive Beam Splitter after the focusing lens.

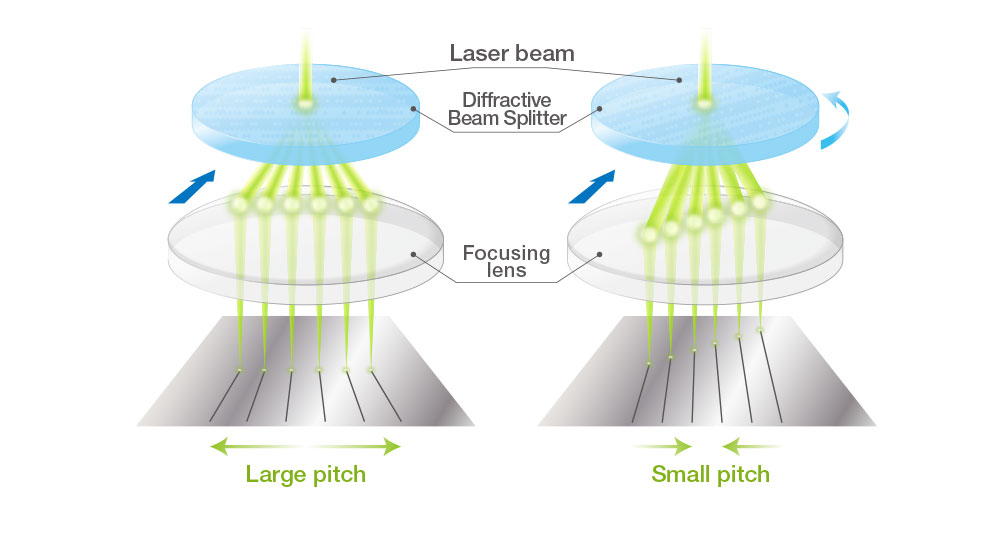

●Pitch adjustment of multi-point scribing is possible by rotating the Diffractive Beam Splitter.
Movie
Spec Examples
Multi-spot
Scroll horizontally
| Cat. No. | Wavelength (nm) | Number of Spots | Pitch*1 (µm) | Diffraction Effciency (%) | Variation (%) | Noise (%) | Material | External (mm) | Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|
| DBS Q1-2X1-2480 | 1064 | 2×1 | 2480 | 81 | ±1 | <12 | Quartz | 25 | 5 |
| DBS Q1-4X1-2660 | 4×1 | 2660 | 56 | ±1 | <4 | 50 | |||
| DBS Q1-2X2-1230 | 2×2 | 1230 | 56 | ±1 | <6 | 50 | |||
| DBS Q1-6X1-82 | 6×1 | 82 | 75 | ±1 | <3 | 50 | |||
| DBS Q1-6X1-500 | 6×1 | 500 | 78 | ±2 | <5 | 25 | |||
| DBS Q1-6X1-1000 | 6×1 | 1000 | 78 | ±2 | <5 | 25 | |||
| DBS Q1-6X1-2448 | 6×1 | 2448 | 72 | ±1 | <3 | 50 | |||
| DBS Q1-6X6-315 | 6×6 | 315 | 77 | ±3 | <5 | 25 | |||
| DBS Q1-6X6-1000 | 6×6 | 1000 | 75 | ±2 | <7 | 50 | |||
| DBS QH-4X1-1583 | 633 | 4×1 | 1583 | 56 | ±1 | <4 | 50 | 5 | |
| DBS Q2-2X1-270 | 532 | 2×1 | 270 | 71 | ±1 | <3 | 30 | 5 | |
| DBS Q2-2X1-286 | 2×1 | 286 | 81 | ±1 | <12 | 15 | |||
| DBS Q2-4X1-212 | 4×1 | 212 | 56 | ±1 | <5 | 30 | |||
| DBS Q2-4X1-1330 | 4×1 | 1330 | 56 | ±1 | <4 | 50 | |||
| DBS Q2-4X1-5000 | 4×1 | 5000 | 57 | ±1 | <4 | 50 | |||
| DBS Q2-2X2-207 | 2×2 | 207 | 53 | ±1 | <4 | 25 | |||
| DBS Q2-7X1-20 | 7×1 | 20 | 74 | ±1 | <5 | 50 | |||
| DBS Q2-8X1-270 | 8×1 | 270 | 57 | ±2 | <2 | 50 | |||
| DBS Q2-26X1-361 | 26×1 | 361 | 61 | ±2 | <10 | 25 | |||
| DBS Q2-7X7-20 | 7×7 | 20 | 76 | ±3 | <4 | 50 | |||
| DBS Q3-4X1-250 | 355 | 4×1 | 250 | 55 | ±1 | <2 | 25 | 5 | |
| DBS Q3-4X1-888 | 4×1 | 888 | 56 | ±1 | <4 | 50 | |||
| DBS Q3-4X1-1230 | 4×1 | 1230 | 59 | ±2 | <7 | 50 | |||
| DBS Q3-6X1-200 | 6×1 | 200 | 78 | ±1 | <5 | 80 | 8 | ||
| DBS Q3-10X1-50 | 10×1 | 50 | 64 | ±1 | <4 | 25 | 5 | ||
| DBS Q4-4X1-665 | 266 | 4×1 | 665 | 56 | ±1 | <4 | 50 | 5 |
*1：Combination focusing lens focal length：f100mm
Beam Shaping
Scroll horizontally
| Cat. No. | Wavelength (nm) | Spot pattern | Pitch*1 (µm) | Diffraction Effciency (%) | Variation (%) | Noise (%) | Material | External (mm) | Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|
| DBM Q1-4F-200 | 1070 (1064) |
4 Spots cross uniform strength | 200 | 80 | ±7 | <12 | Quartz | 50 | 5 |
| DBM Q1-3X3F-100 | 3x3 Uniform strength spots | 100 | 92 | ±1 | <2 | 50 | 5 | ||
| DBM Q1-4X4F-320 | 4x4 Uniform strength spots | 320 | 66 | ±1 | <2 | 80 | 8 | ||
| DBM Q1-21P-200 | 21 Spots (5x5 without coner) central high-strength | 200 | 93 | ±1 | <3 | 50 | 5 | ||
| DBM Q1-7X7F-40-S | 7x7 Uniform strength spots | 40 | 76 | ±3 | <4 | 30 | 5 | ||
| DBM Q1-7X7F-40 | 7x7 Uniform strength spots | 40 | 76 | ±3 | <4 | 50 | 5 | ||
| DBM Q1-7X7F-334 | 7x7 Uniform strength spots | 334 | 71 | ±3 | <4 | 50 | 5 |
*1 Combination focusing lens focal length：f100mm
