FE type / FB type
Excellent chip control! 2 types of chip breakers cover wide range conditions of feed!!
Recommended Work Material
- P
- M
Feature
Excellent chip control!
2 types of chip breakers cover wide range conditions of feed!!
・2 types of chip breakers cover wide range conditions of feed!!
・Extensive product lines are available to meet various machining requirements.
・The positive insert chipbreaker FB type is also availabe.

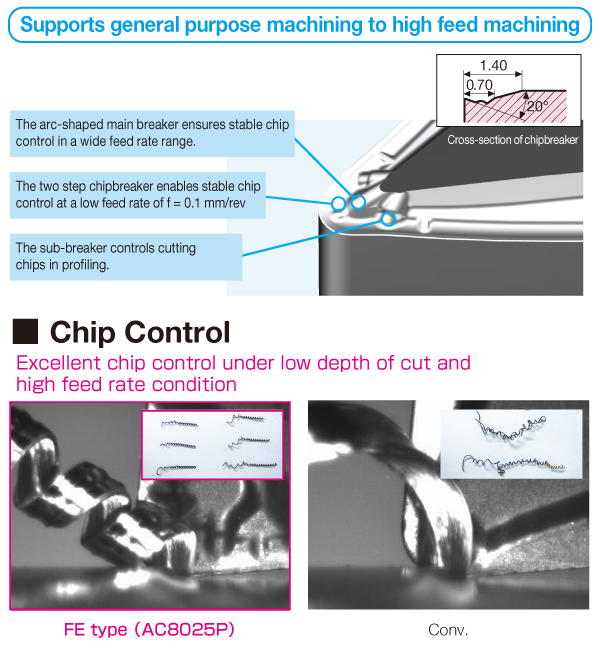

FE type
Work material : STKM13A （Pipe steel）
Insert：CNMG120408N-FE （AC8025P）
Cutting conditions： vc=200m/min , f=0.4mm/rev , ap=0.2mm , Dry

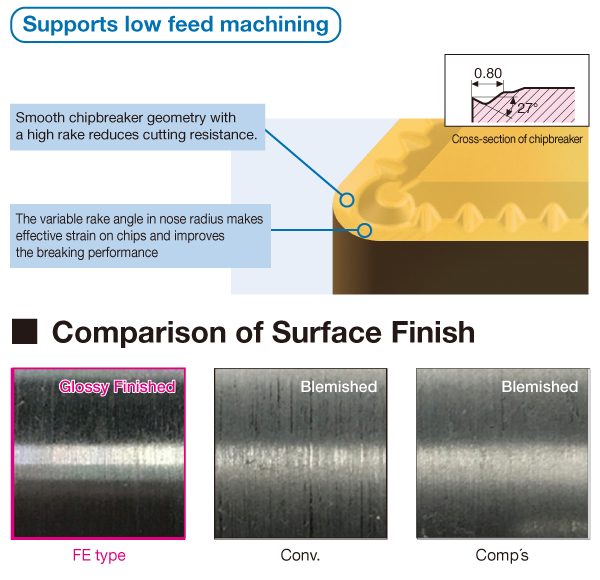

FB type
Work material：SCM415
Insert：CNMG120408N-FB （T1500A）
Cutting conditions： vc=200m/min , f=0.1mm/rev , ap=0.5mm , Wet

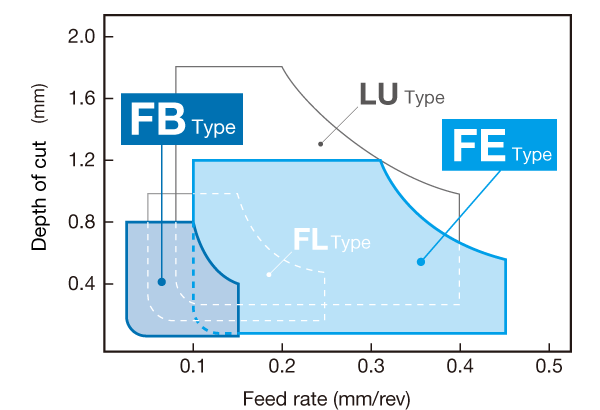

Application Range
Product Inquiry
Feel free to contact us for cutting and machining information
on cutting troubles and review of tooling as well as questions,
feedbacks, and requests for our home page.
