Grades
-
Coated Carbide Grades for Small Lathes/AutolathesAC1135U/AC1030UEmploys ABSOTECH™ PVD coating and a dedicated tough carbide substrate.
High-quality cutting edge suppresses adhesion and micro-chipping, realising excellent machined surface quality.
New AC1135U grade is a versatile coated carbide grade specialized for small lathe/autolathe machining, supporting various work materials including stainless steel
-
Coated Carbide Grades for Exotic AlloysAC5005S/AC5015S/AC5025SHighly heat-resistant super multi-layered thin-film AlTiSiN structure realises excellent crater wear and flank wear resistance.
PVD coated carbide grades for exotic alloy turning, realizing absolutely stable machining on various work materials such as Inconel
-
Coated Carbide Grades for Titanium Alloy TurningAC9115T/ AC9125TCoated carbide grade dedicated for titanium alloy, utilizing PVD coating Absotech™ technology, which adopts the industry's first WC-based composition, and a dedicated carbide substrate to suppress chemical reactions to titanium alloy and significantly improve wear resistance
-
Coated Cermet Grades for Steel TurningT2100ZT2500ZCrack progression dramatically suppressed with new dedicated high-strength cermet alloy
Fracture and wear resistance also improved through a coating technology with excellent adhesion strength
Coated cermet grade with outstanding stability, realizing the machined surface finish unique to cermet
-

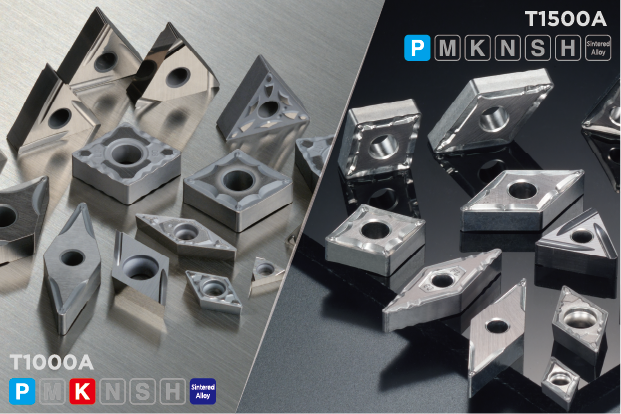

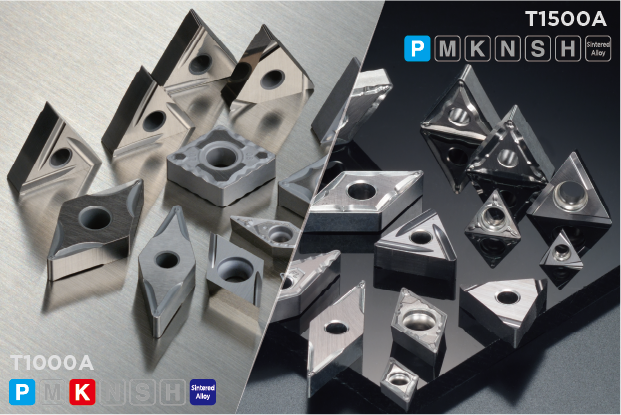

Uncoated Cermet Grades for Steel TurningT1000A/T1500ALineup includes T1000A, a high-hardness grade with superior wear resistance, and T1500A, a general-purpose grade that provides both wear and fracture resistance with higher-quality surface finishes

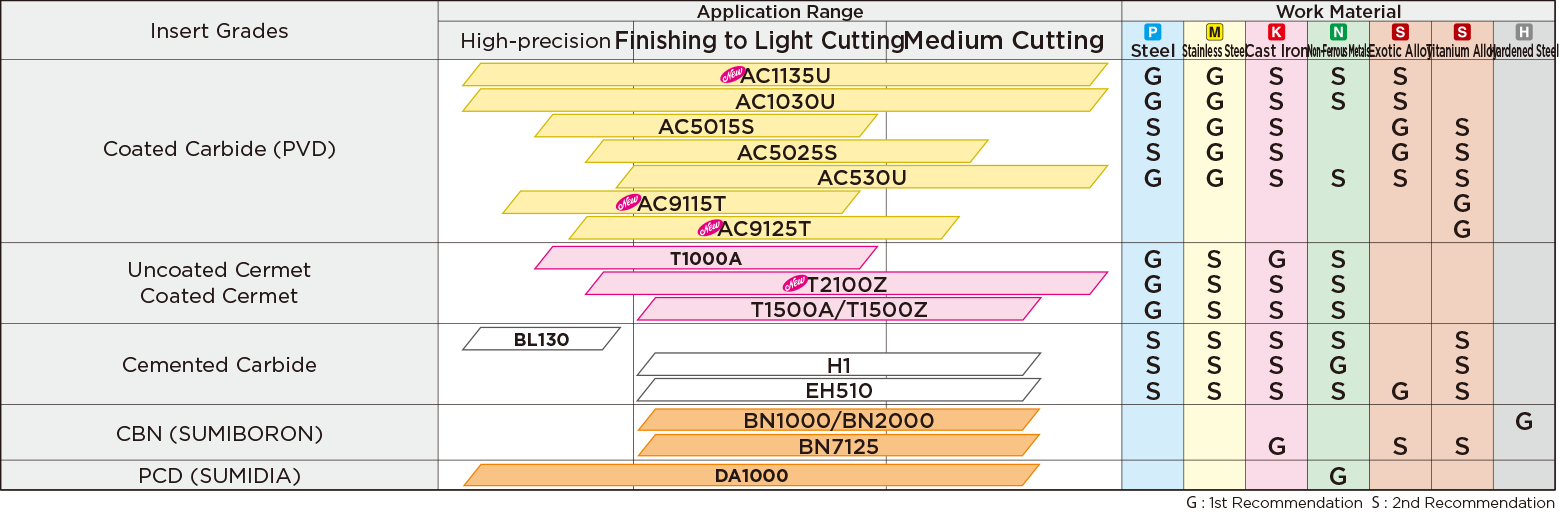

■ Insert Grade Application Range (General-purpose)

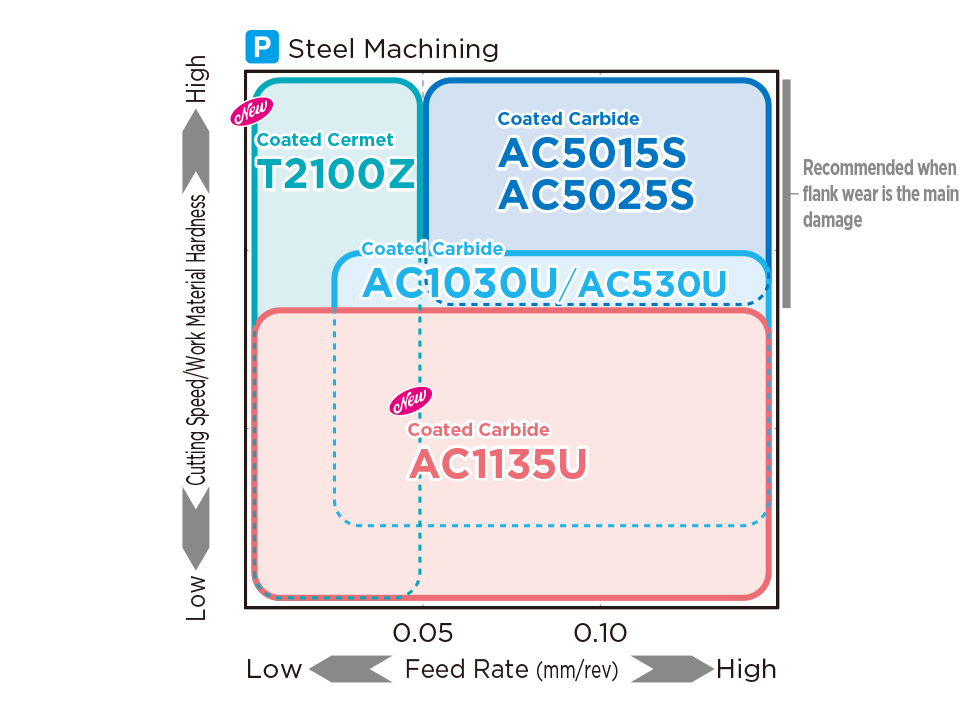

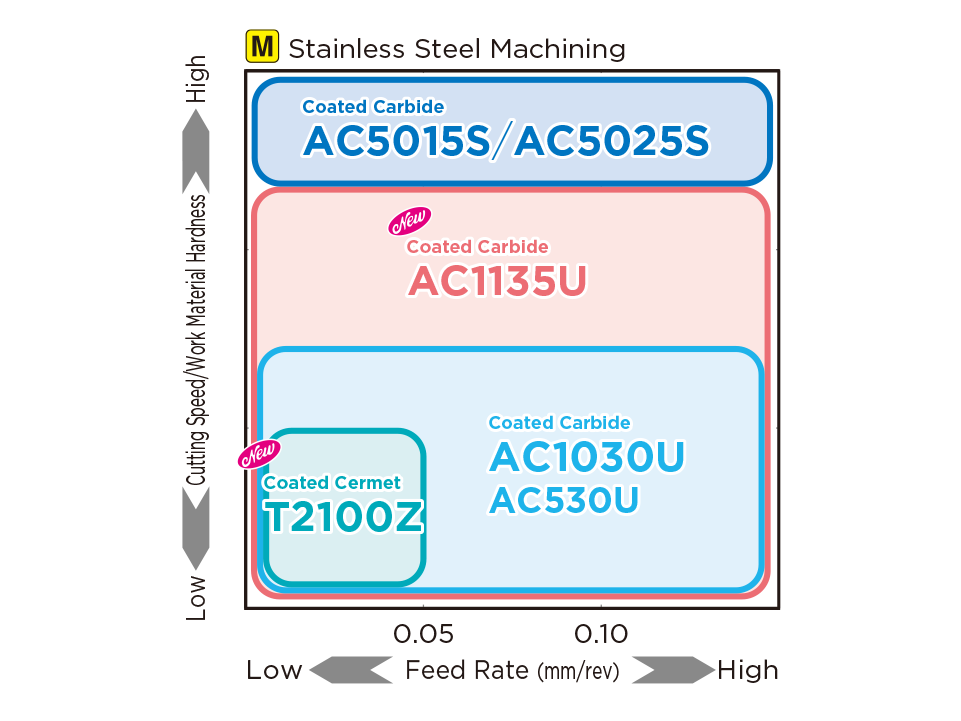

■ Optimal Insert Grade Application Range for Autolathes
